SiENBE04-401A Indoor Unit
Removal Procedure 149

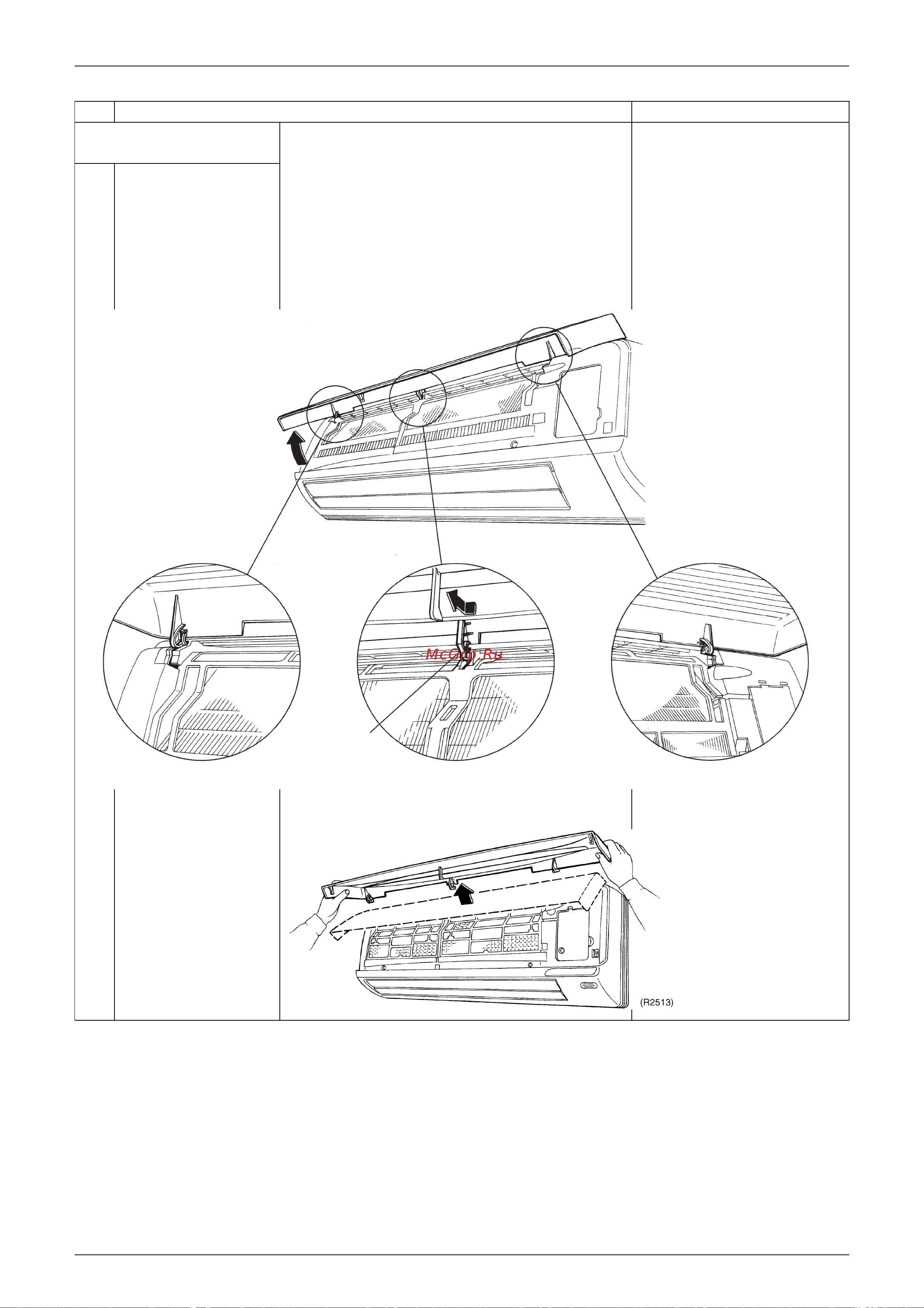

3. Opening and shutting front
panel
1
Hook a finger onto the
projection part provided
on the both sides of the
unit’s panel and open
up the panel to the
position higher than it
will stop.
Support the front panel by one
hand, while remove the rotation
axis at the upper center by the
other hand.
And pull out the front panel
forward to remove.
2
Remove front panel
from the unit.
Step Procedure Points
Rotation axis
Slide the center rotary axis the left and remove it out.
(R2512)
