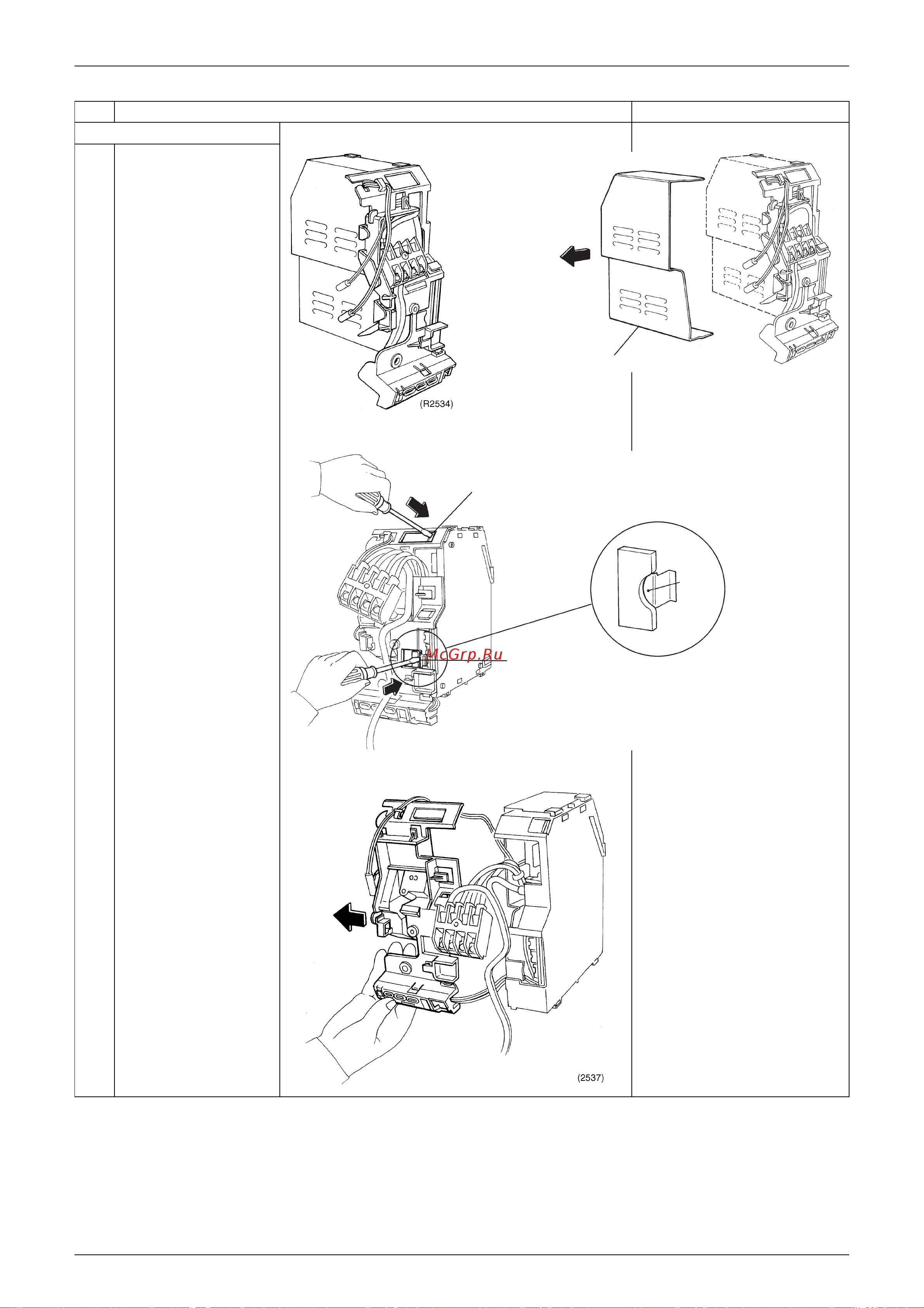

SiENBE04-401A Indoor Unit
Removal Procedure 159
2. Removal of PCB
1
Remove the shelter.
2
Disengage the front
plate of the electrical
box.
Disengage the knobs
by pushing the two
hooks at the top and the
bottom.
3
Sliding to the left, the
front part of the
electrical box can be
removed.
Step Procedure Points
Shelter
(R2535)
Pushing point
Pushing point
Push
(R2536)
