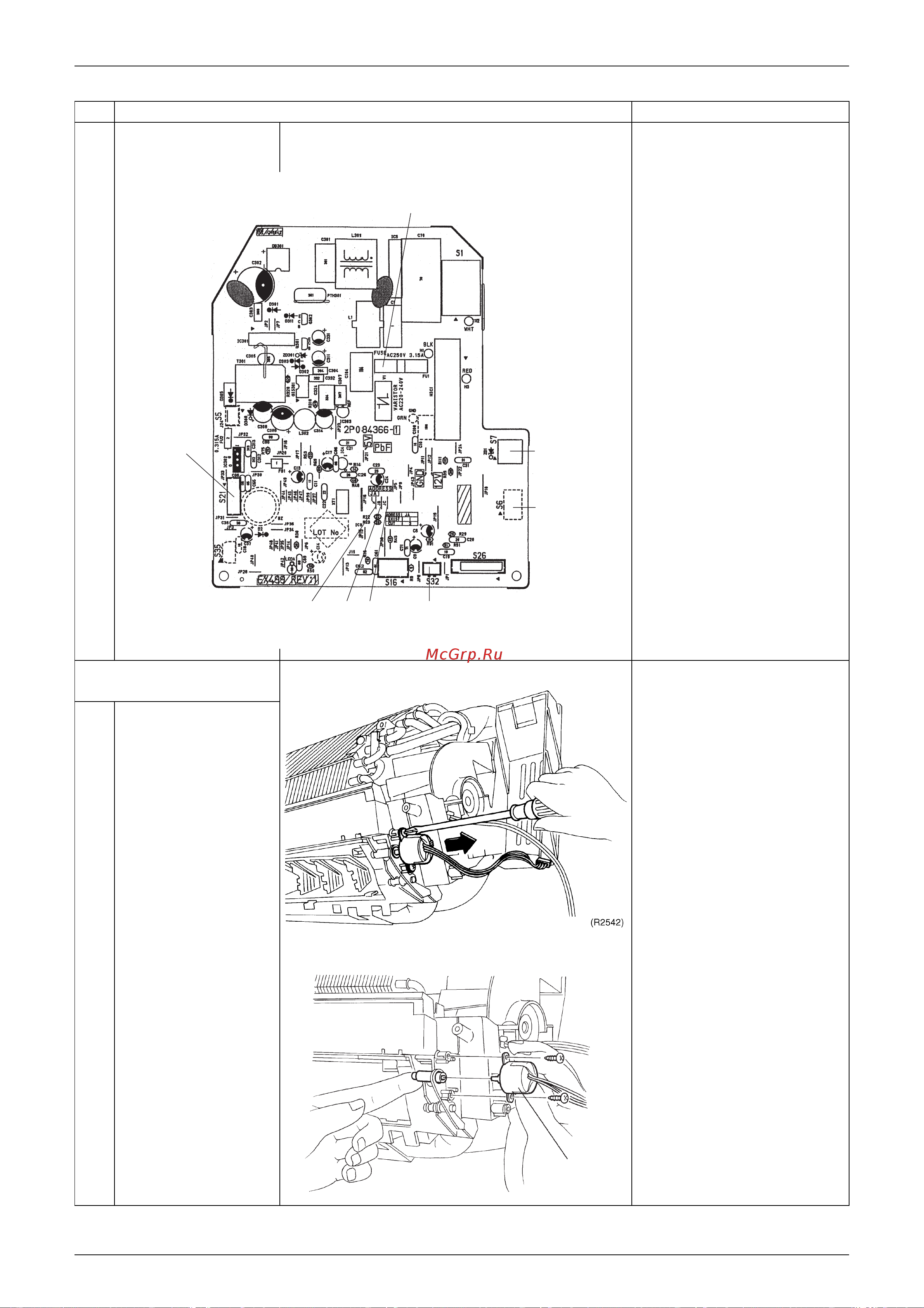

SiENBE04-401A Indoor Unit
Removal Procedure 161
6
Control PCB. The control PCB is
integrated with the power
supply PCB.
3. Remove swing motor
assembly.
1
To remove swing motor
assembly, remove two
screws.
(Manual adjusting for
the vertical blades.)
Provide a supporter so that
the joint link will not drop off,
in case the horizontal blade
assembly is removed.
Step Procedure Points
JCJB
(R2541)
Glass tabu fuse
3.15A
250V
S21
(HA terminal)
S32
(Heat exchanger thermistor)
S7(Fan motor)
S6(Swing motor)
JA
(Address)
Swing motor
(R2543)
