Outdoor Unit / RK(X)S-C, ARK(X)S-C SiENBE04-401A
172 Removal Procedure
5

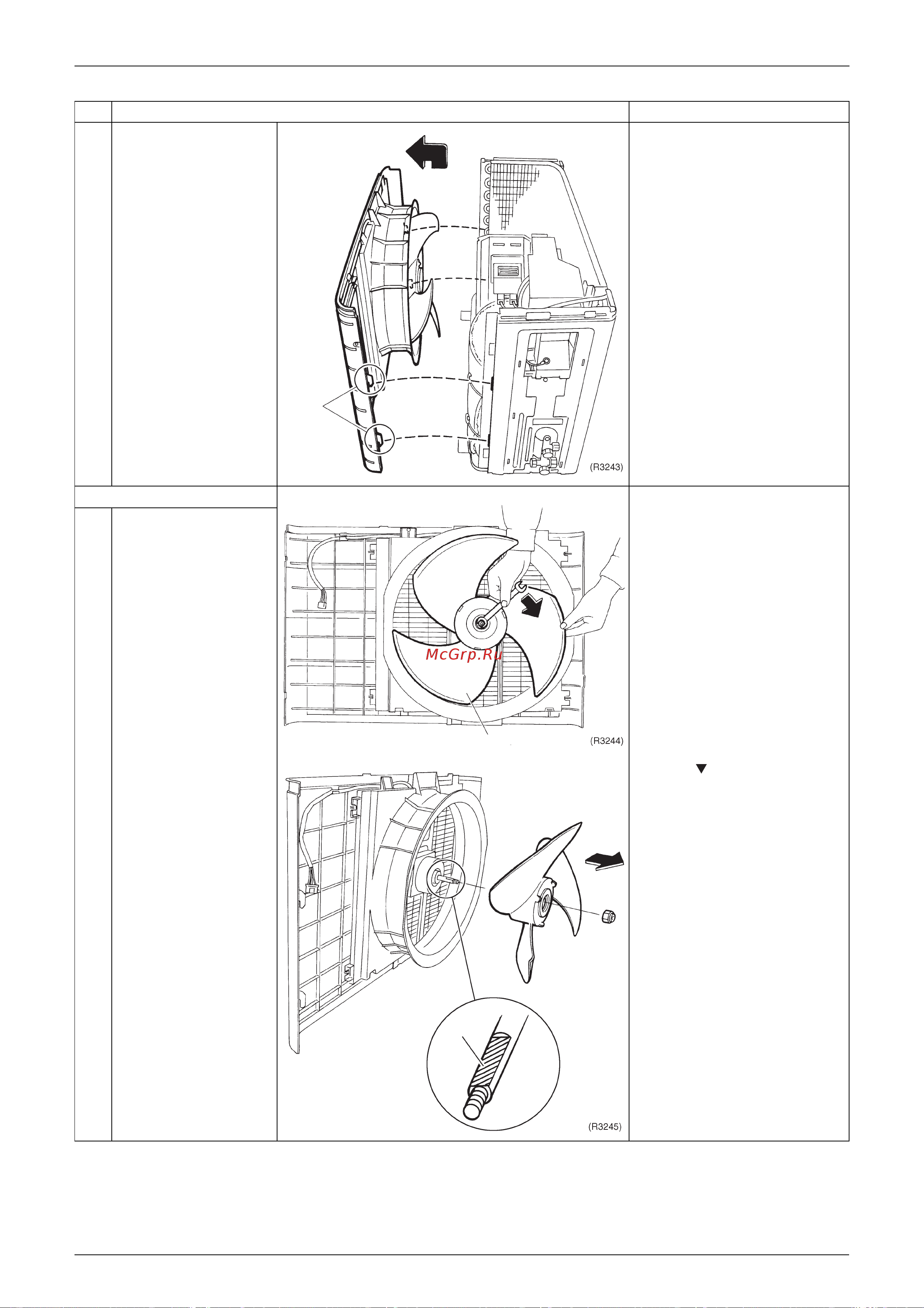

Undo the hooks.
Pull and remove the
front panel.
The front panel has 4 hooks.
The fan motor is united with
the front panel.
3. Remove the fan motor. The screw has reverse
winding.
1
Unscrew the washer-
fitted nut (M10) of the
propeller fan with a
spanner.
2
Remove the propeller
fan.
Align mark of the
propeller fan with D-cut
section of the motor shaft
when reassembling.
Step
Procedure Points
Hooks
Propeller fan
D-cut
