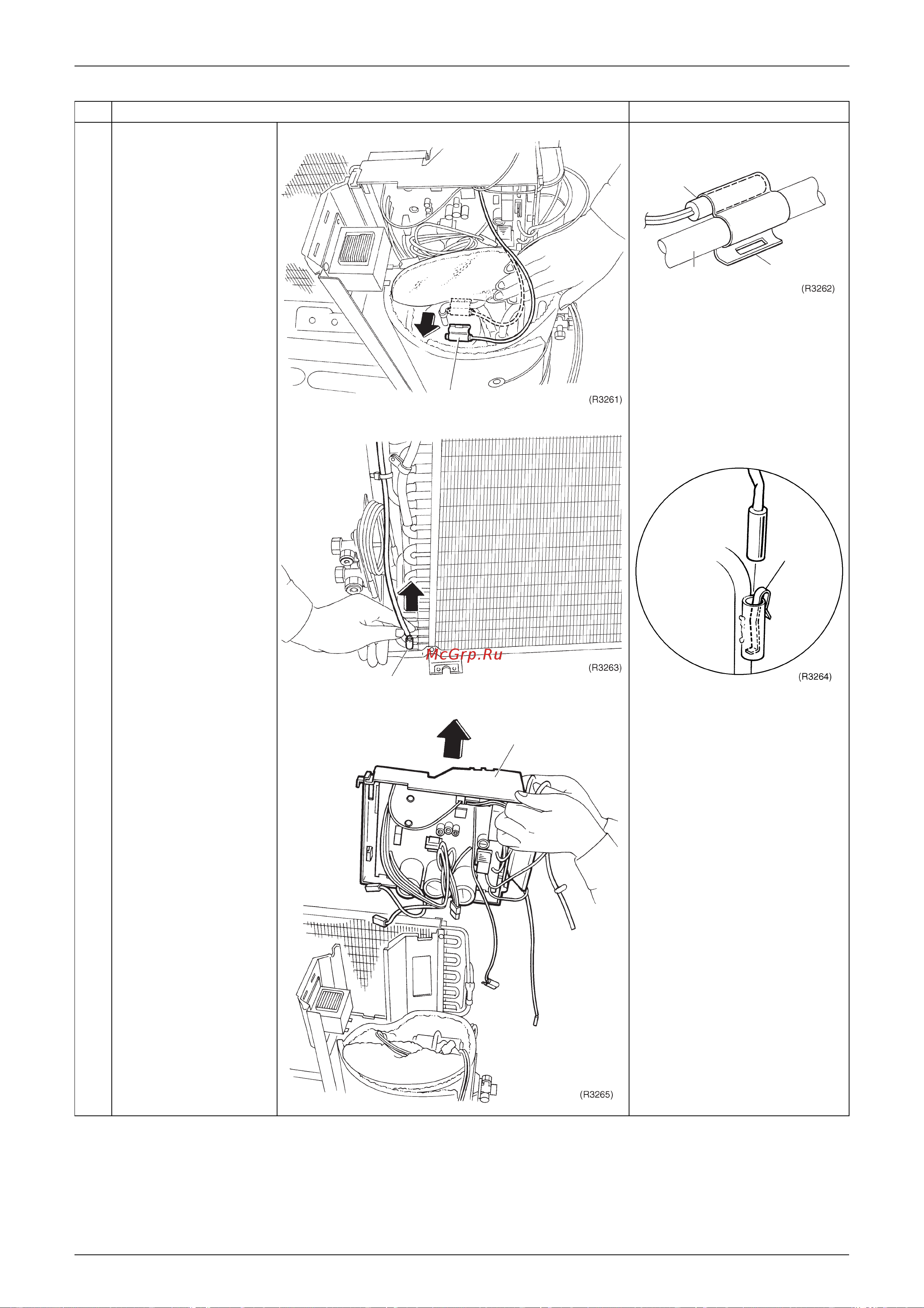

Outdoor Unit / RK(X)S-C, ARK(X)S-C SiENBE04-401A
178 Removal Procedure
4
Release the discharge
pipe thermistor.
Pay attention so as not to
lose the clip for thermistor.
5
Release the heat
exchanger thermistor.
Pay attention so as not to
lose the clip.
6
Lift and remove the
electrical box.
Step
Procedure Points
Discharge pipe thermistor
Thermister
Piping
Clip
Heat exchanger thermistor
Electrical box
