Outdoor Unit / RK(X)H-C, ARK(X)H-C, R(Y)N-C SiENBE04-401A

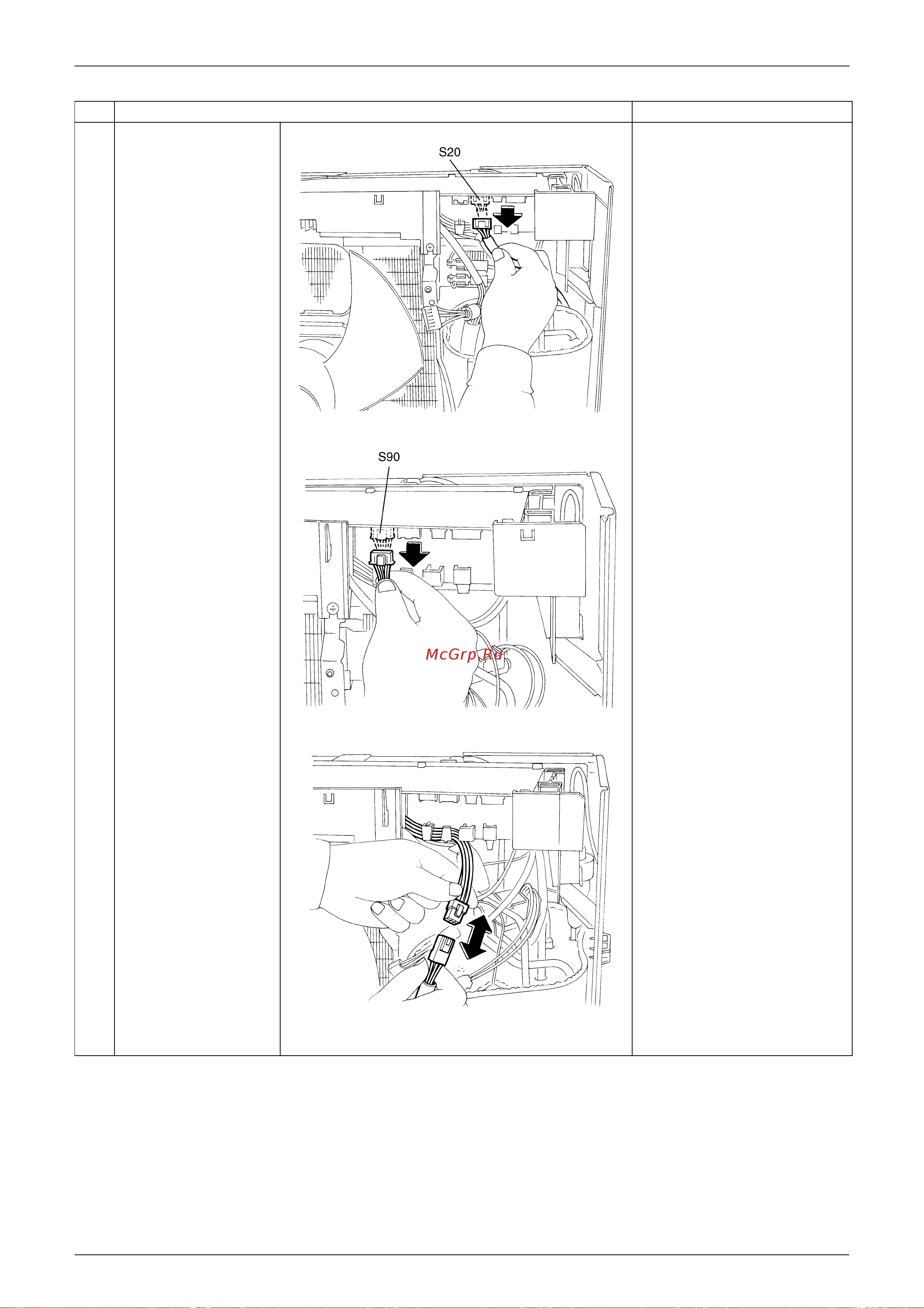

196 Removal Procedure
5
Disconnect the
electronic expansion
valve connector. (S20)
6
Disconnect the
thermistor connector.
(S90)
outdoor air
heat exchanger
discharge pipe
7
Disconnect the relay
harness.
Step Procedure Points
(R4033)
(R4034)
(R4035)
