Outdoor Unit / RK(X)H-C, ARK(X)H-C, R(Y)N-C SiENBE04-401A

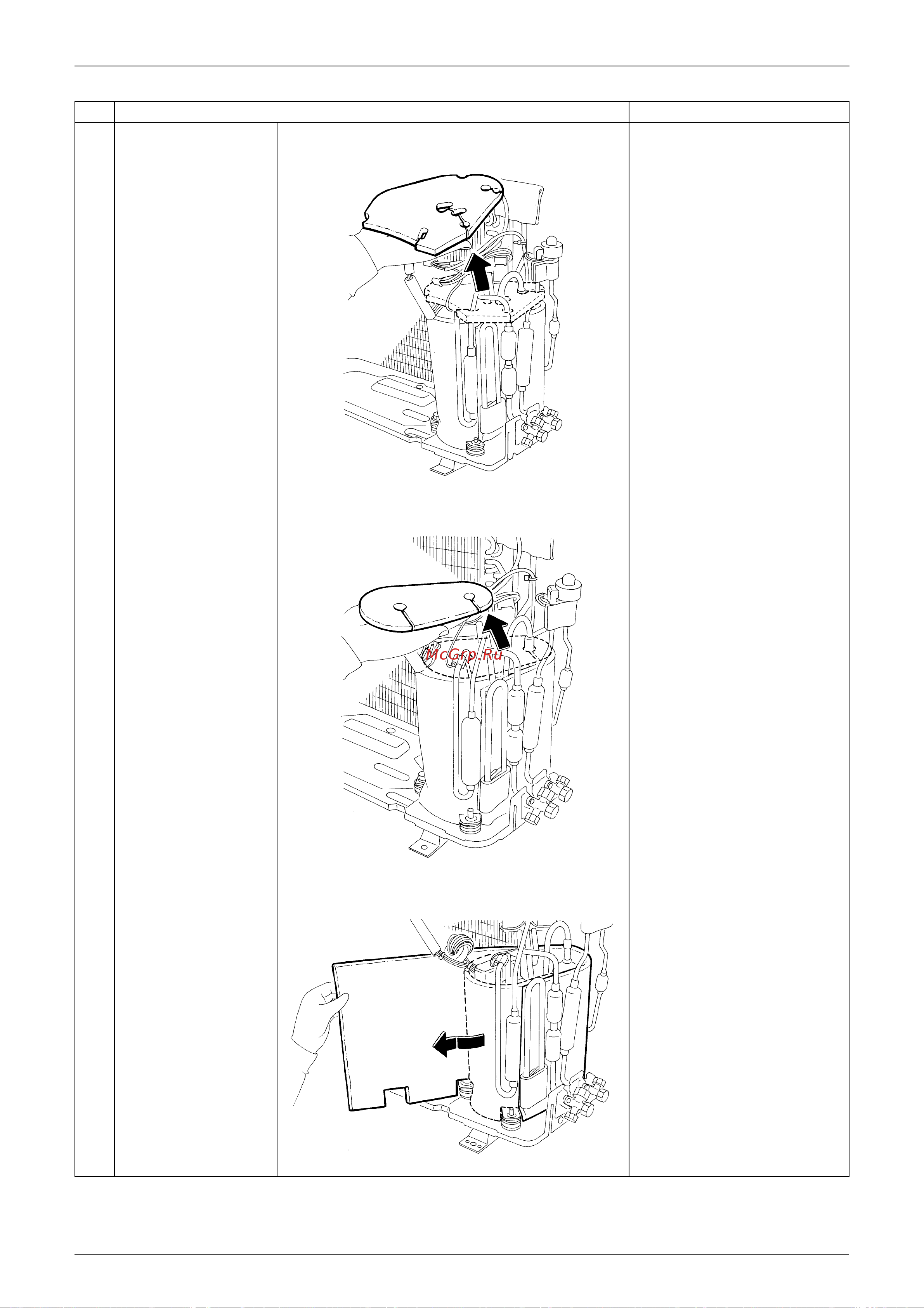

208 Removal Procedure
3
Pull out the top sound
insulation pad.
Since the slit prepared for
the piping on the sound
insulation pad is torn easily,
remove the pad carefully.
4
Pull out the under pad
of the top sound
insulation.
5
Pull out the inner sound
insulation pad.
When restoring, the sound
insulation pad should pass
the internal side of the
piping.
Step Procedure Points
(R4064)
(R4065)
(R4066)
