Second steps：Set the IP address of the Ethernet port of the PC machine，The IP address must

be in the 192.168.0.0/24 segment (such as IP address 192.168.0.100)。Judging the connectivity

between PC and switch through Ping 192.168.0.1。

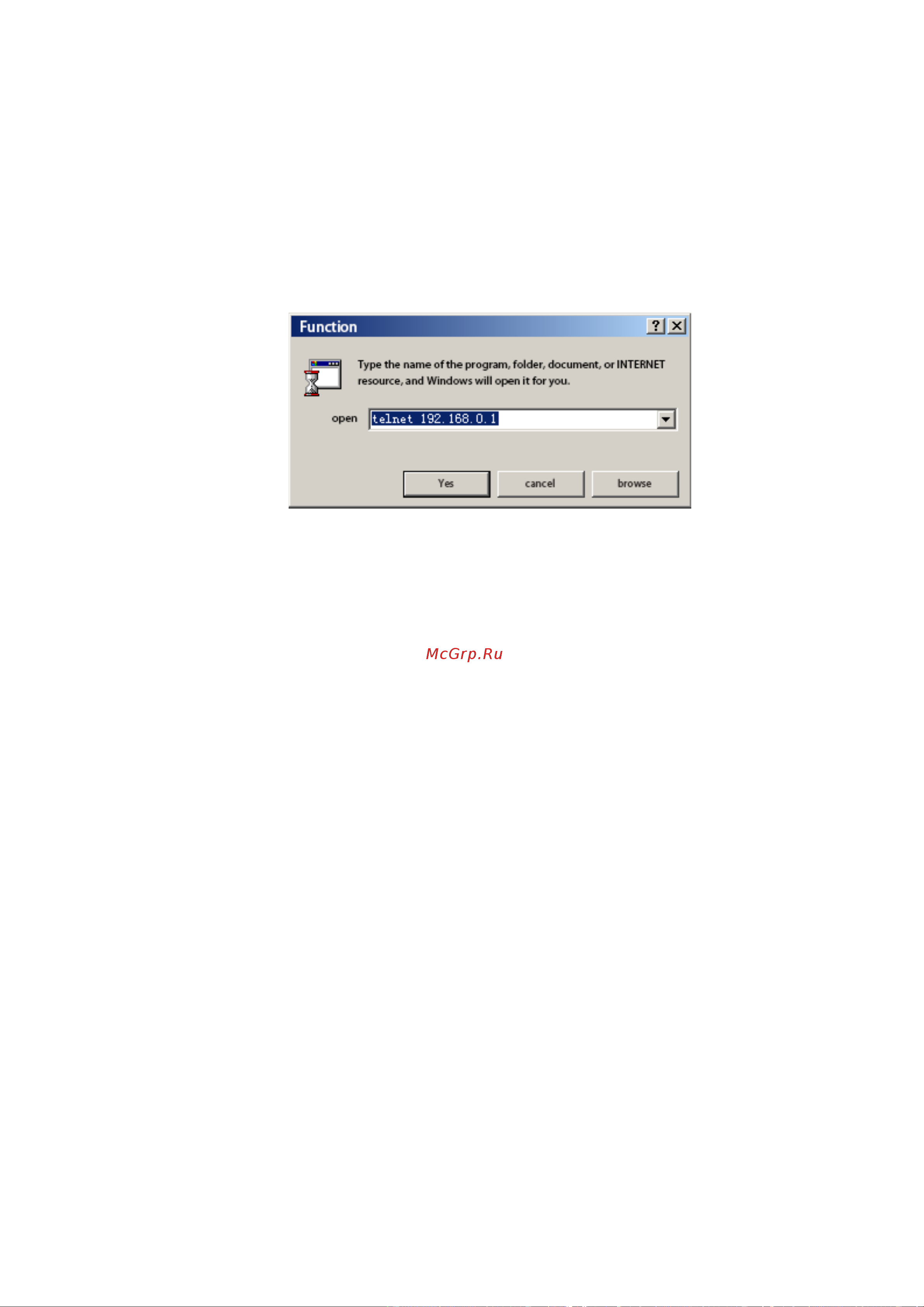

Third steps：If the PC is connected to the switch，Then Telnet 192.168.0.1 enters the Telnet

terminal interface。The following diagram：

Fourth steps：If the system does not have a password, the Telnet interface goes directly to the

CLI, and the CLI prompt appears (default is Switch >).；If the system sets the password, you need

to enter the password on the Telnet interface to enter the CLI.

Two points should be paid special attention to：

 The IP address of the switch port is based on the VLAN three layer interface，Before

accessing the switch，You must set the IP address of a VLAN interface，The default IP

address of VLAN1 is 192.168.0.1，It can be used directly。The IP address of the VLAN

interface can be configured through the Console port。

 The user accesses the switch through the port，You can connect PC and ports directly

through Ethernet cable，You can also connect through a network，You just need PC to

communicate with one of the VLAN switches。

1.2 CLI mode introduction

The main contents include：

 The role of CLI model

 Identification of CLI mode

 Classification of CLI patterns
