190 / 322
vlanid
show gmrp timer <ifname>
View timer information for specific
ports
Privileged mode
12.3 Examples of typical GMRP configurations
1. Networking requirement
In order to realize dynamic registration and update of multicast information between switches, it is
necessary to start GMRP on the switch

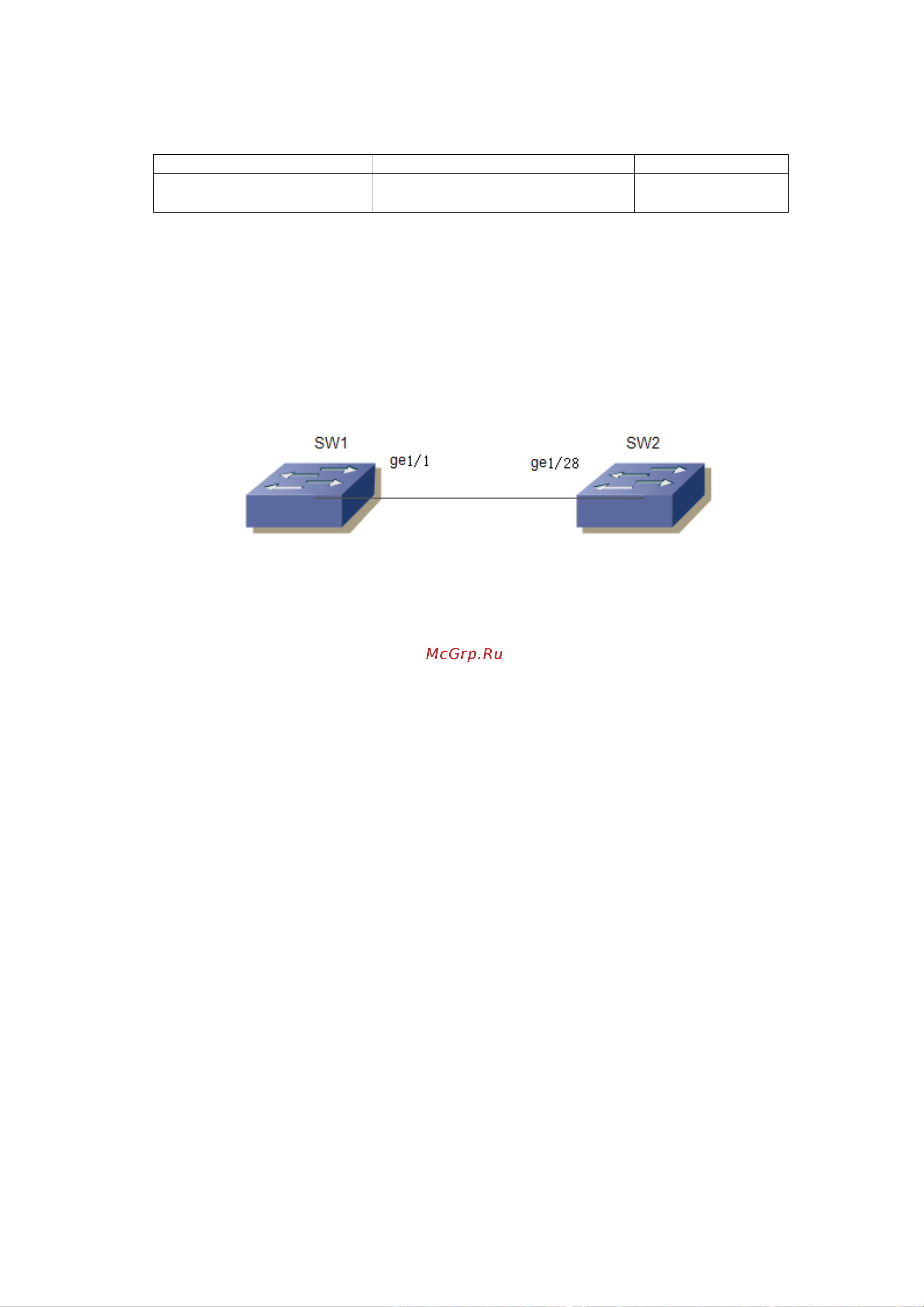

2. Network diagram
GMRP example network diagram
3. Configuration steps
Configuring SW1
Start global GMRP
Switch(config)# set gmrp enable
Start port GMRP on Gigabit Ethernet port ge1/1
Switch(config)# set port gmrp enable ge1/1
Switch(config)#
Configuring SW2
Start global GMRP
Switch(config)# set gmrp enable
Start port GMRP on Gigabit Ethernet port ge1/28
Switch(config)# set port gmrp enable ge1/28
Switch(config)#
