address
mvr vlan <1-4094>
Specifies the VLAN to receive
multicast data
Global
configuration mode
no mvr vlan
Restore default VLAN1 for
receiving multicast data
Global
configuration mode
mvr-interface (enable|disable) Boot interface MVR
Interface
configuration mode
show mvr
Display MVR configuration
information
Privileged
mode
14.3 MVR configuration example

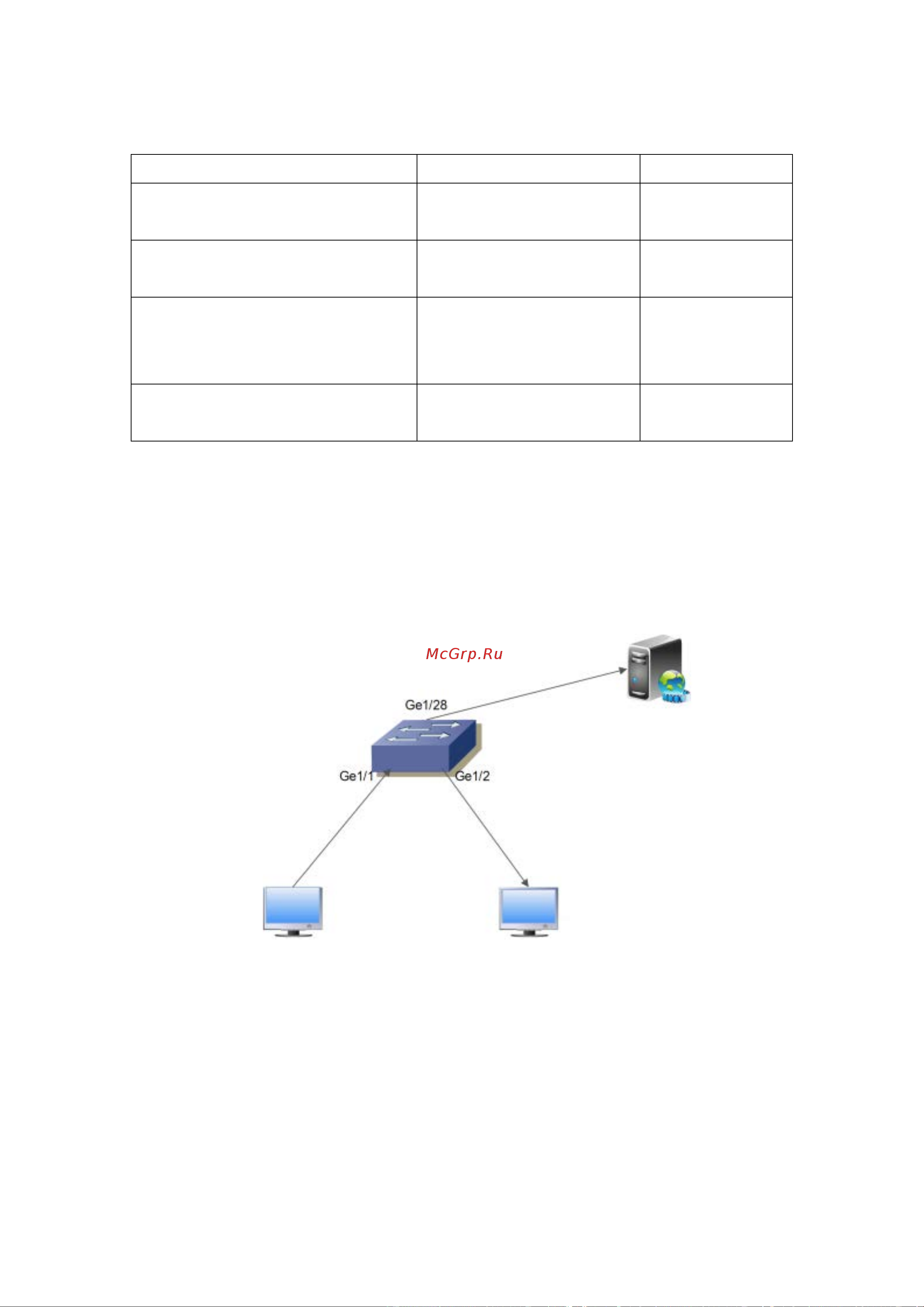

Network topology as shown below, the user 1 and user 2 belong to vlan10 vlan20
respectively, user 1 and user 2 see the same program, program range 225.1.1.1~225.1.1.64, MVR
VLAN is 100：
Configure VLAN, start global IGMP snooping, configure MVR VLAN, MVR program group
range, global enable MVR：
Switch#configure terminal
Switch(config)#ip igmp snooping
Switch(config)# mvr enable
Switch(config)#mvr vlan 100
Switch(config)#mvr group 225.1.1.1 64
Switch#
Configure switch user port Ge1/1 Ge1/2, and uplink Ge1/28：
