Switch(config)#ip route 200.1.1.0 255.255.255.0 10.1.1.2

or Switch(config)#ip route 200.1.1.0/24 10.1.1.2

Delete the destination IP address is 200.1.1.0, subnet mask is 255.255.255.0, the next hop is

10.1.1.2 static routing. Configure command as：

Switch(config)#no ip route 200.1.1.0/24

or Switch(config)#no ip route 2001.1.0/24 10.1.1.2

or Switch(config)#no ip route 200.1.1.0 255.255.255.0

or Switch(config)#no ip route 200.1.1.0 255.255.255.0 10.1.1.2

18.4 TCP/IP basic configuration example

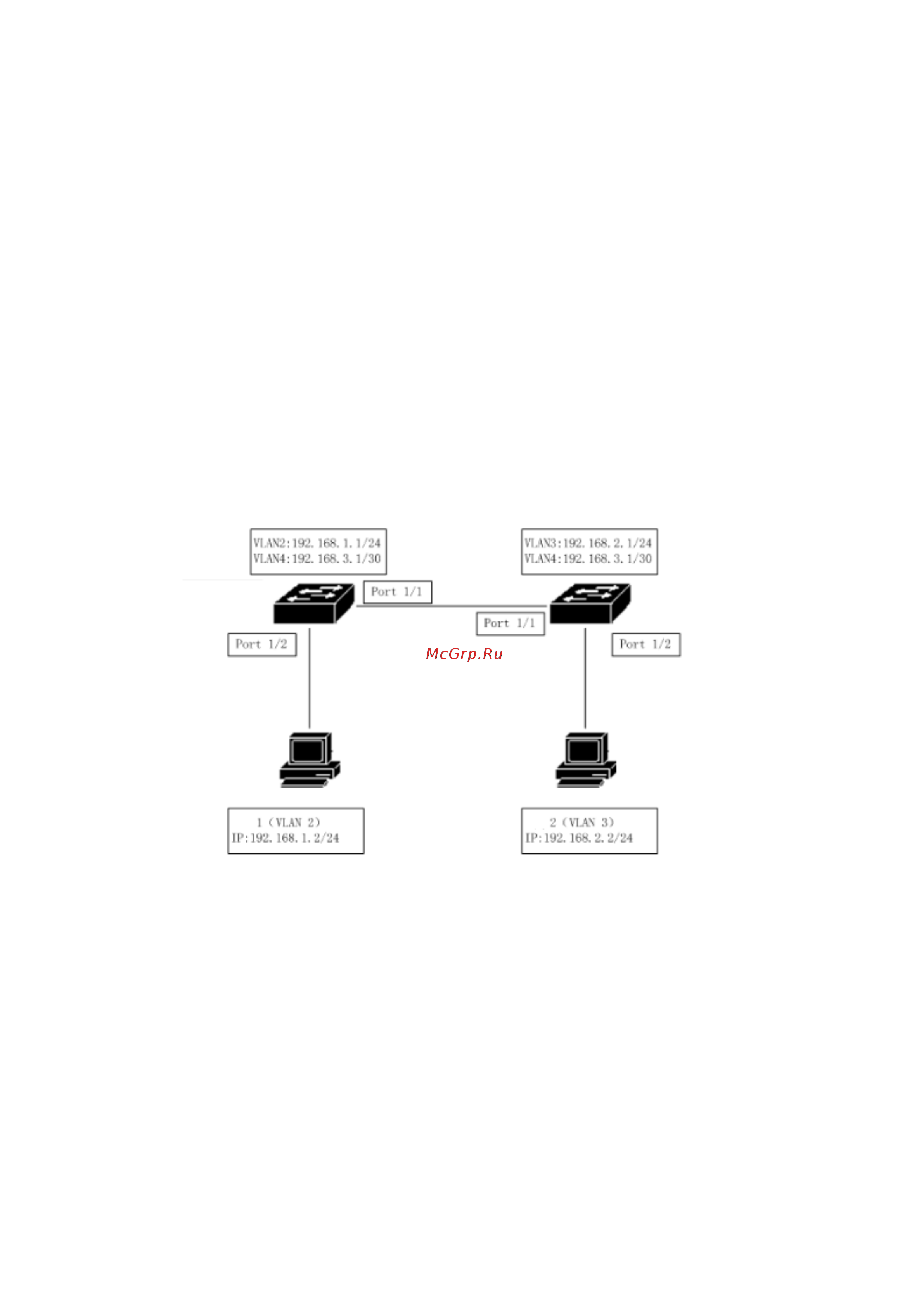

In the diagram, the switch 1 is a two layer switch, and the switch 2 is a three layer switch。

18.4.1 Three layer interface

On the switch 1, configure the corresponding three layer interface of VLAN2, and assign a IP

address 192.168.1.1/24。

Configuration is as follows：

Switch#config t

Switch(config)#vlan database

Switch(config-vlan)#vlan 2

Switch(config-vlan)#exit
