9.8 Example of cross ring data forwarding configuration
There are three devices SWA, SW, SWB, through the EAPS protocol inter ring to achieve vlan1

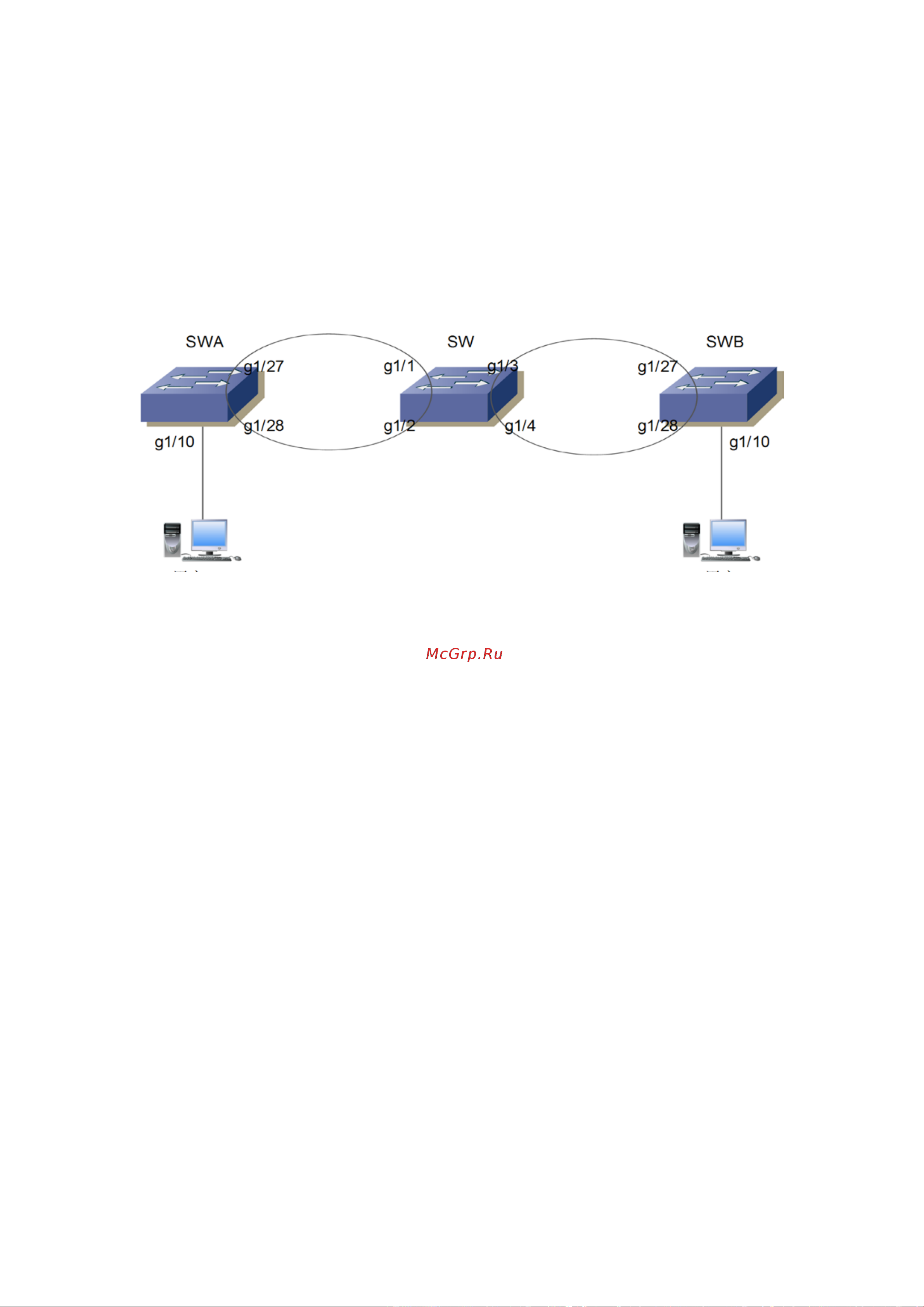

vlan2 interworking。Topology as follows：
SWA loop 1 controls vlan111, protects vlan1, 2, configured as follows：
vlan database
vlan 2
vlan 111
interface ge1/10
switchport access vlan 2
interface ge1/27
switchport mode trunk
switchport trunk allowed vlan add 2
switchport trunk allowed vlan add 111
interface ge1/28
switchport mode trunk
switchport trunk allowed vlan add 2
switchport trunk allowed vlan add 111
eaps create 1
eaps mode 1 Transit
eaps primary-port 1 ge1/27
eaps secondary-port 1 ge1/28
eaps control-vlan 1 111
