232 / 322

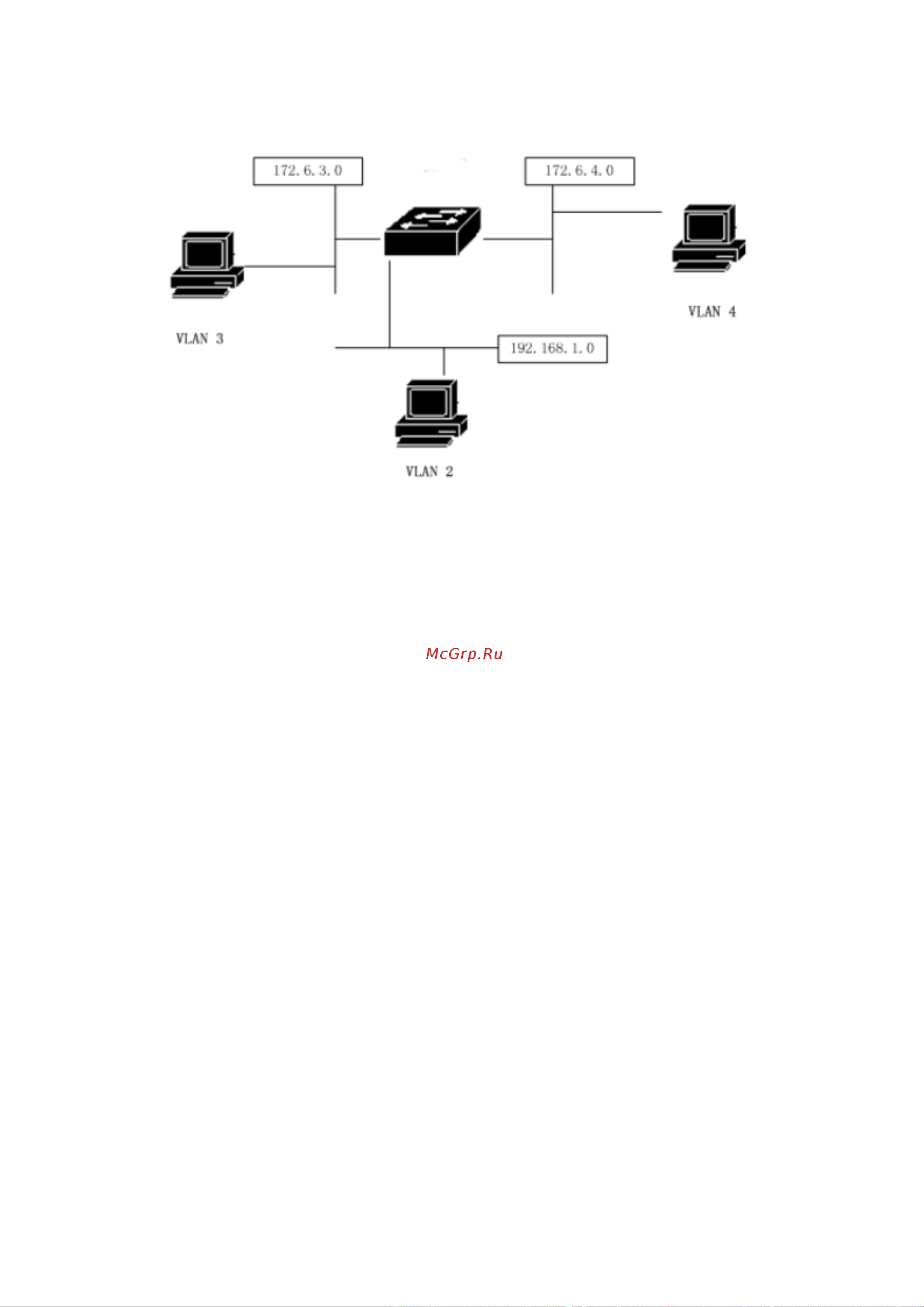

The switches are configured as follows：

Switch#config t

Switch(config)#vlan database

Switch(config-vlan)#vlan 2

Switch(config-vlan)#vlan 3

Switch(config)#interface ge1/1

Switch(config-ge1/1)# switchport mode access

Switch(config-ge1/1)#switchport access vlan 2

Switch(config)#interface vlan2

Switch(config-vlan2)#ip add 192.168.1.1/24

Switch(config)#interface ge1/2

Switch(config-ge1/2)#switchport mode access

Switch(config-ge1/2)#switchport access vlan 3

Switch(config)#interface vlan3

Switch(config-vlan2)#ip add 172.16.3.1/24

Switch(config)#access-list 10 deny 192.168.1.0 0.0.0.255

Switch(config)#access-list 10 permit any

Switch(config)#interface ge1/1

Switch(config-ge1/1)#access-group 10

Switch(config)#interface ge1/2

Switch(config-ge1/2)#access-group 10

Note: according to the specific needs of the configuration of the time period, the time section

associated with ACL rules, refer to the configuration as follows：

Switch(config)#time-range test cycle-time from 8 30 to 17 30 days from 1 to 5
