2500043_a 33

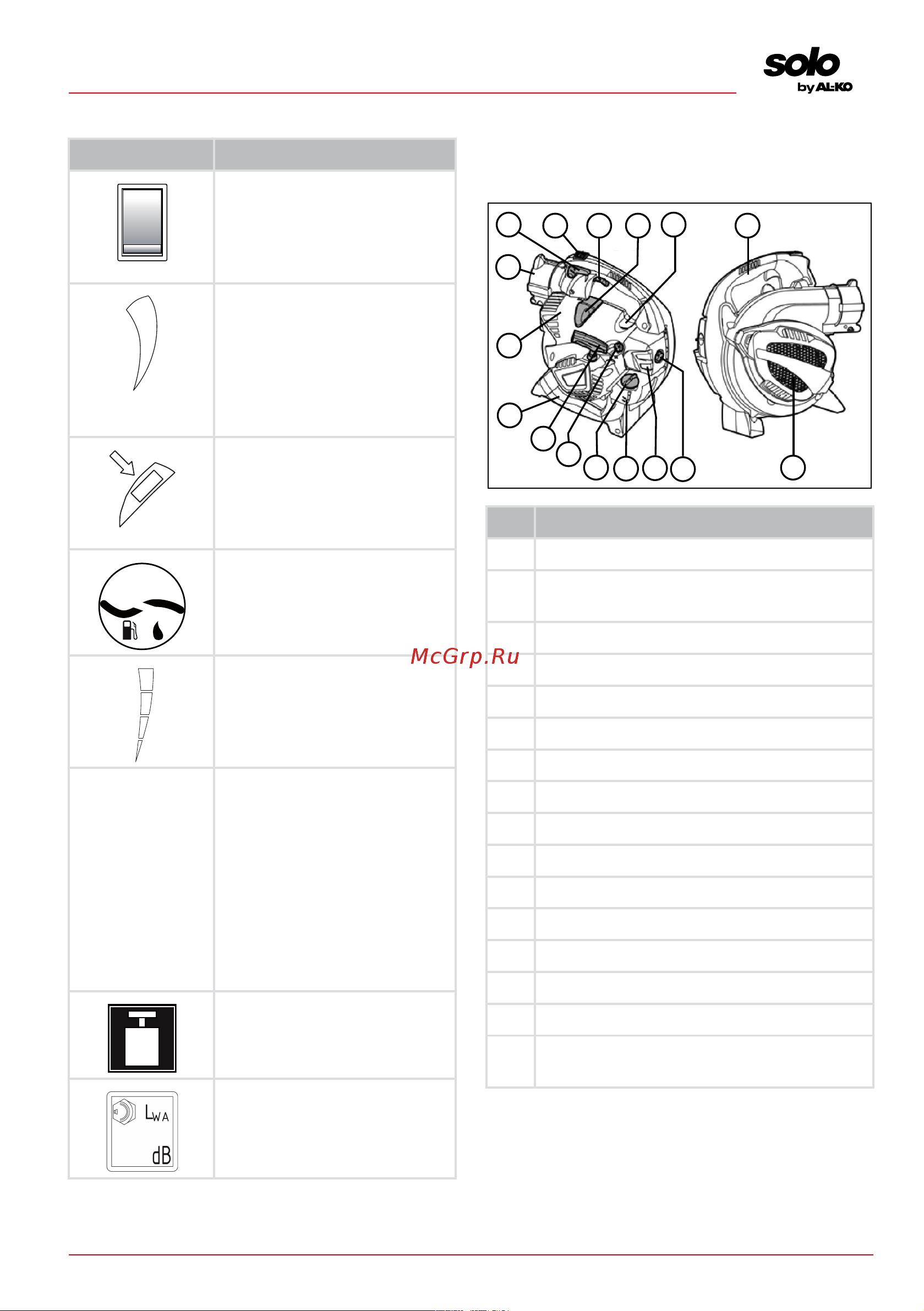

Product description
2.4 Symbols on the machine
Symbol Meaning
I
0
On/Off toggle switch. This
switch is always set to On
"I". If the switch is toggled to
"0", the appliance immedi-
ately switches off.
Symbol on the throttle lock-
ing lever. In the lower posi-
tion, the motor speed can be
set as required with the
throttle lever. In the upper,
engaged position, the motor
runs at maximum speed.
Arrow on the intake grille.
Push the screwdriver into the
upper lateral opening of the
intake grille in order to open
it.
+
40:1
Symbol on the fuel tank cap.
Fill in the mixture at a ratio of
40:1, i.e. 40 parts of petrol: 1
part of 2-stroke oil
1/2
Fill level indicator on the fuel
tank
L H
Symbols for the carburettor
setting:
■
L = decreases the
amount of fuel in the pet-
rol/oil mixture when the
motor is warm
■
H = increases the
amount of fuel in the pet-
rol/oil mixture when the
motor is cold
4,8 kg
Symbol on the type plate:
Weight of the appliance
without accessory parts
1
09
Symbol on the type plate:
Guaranteed sound power in
[dB(A)]
2.5 Product overview
This section describes the parts and controls of
the vacuum/blowing appliance. Accessory parts,
see chapter 2.3 "Scope of supply", page32.
1
2
3
4 5 6
7
8
9
10
11
12
13
14
15
16
No. Component
1 Engine cover
2 Appliance connections for upper blower
tube and exhaust air manifold
3 Throttle locking lever
4 On/Off switch
5 Throttle lever
6 Spark plug connector
7 Primer knob
8 Air filter screw
9 Air filter housing
10 Fuel tank
11 Cap of the fuel tank
12 Rotary choke knob
13 Starter handle
14 Lower handle
15 Upper handle
16 Suction grille. Under the vacuum grille:
Shredding blade and rotor
