DB TECHNOLOGIES VIO L208 [37/149] Mechanics

VIO-L208

Cod. 420120268 REV. 1.0

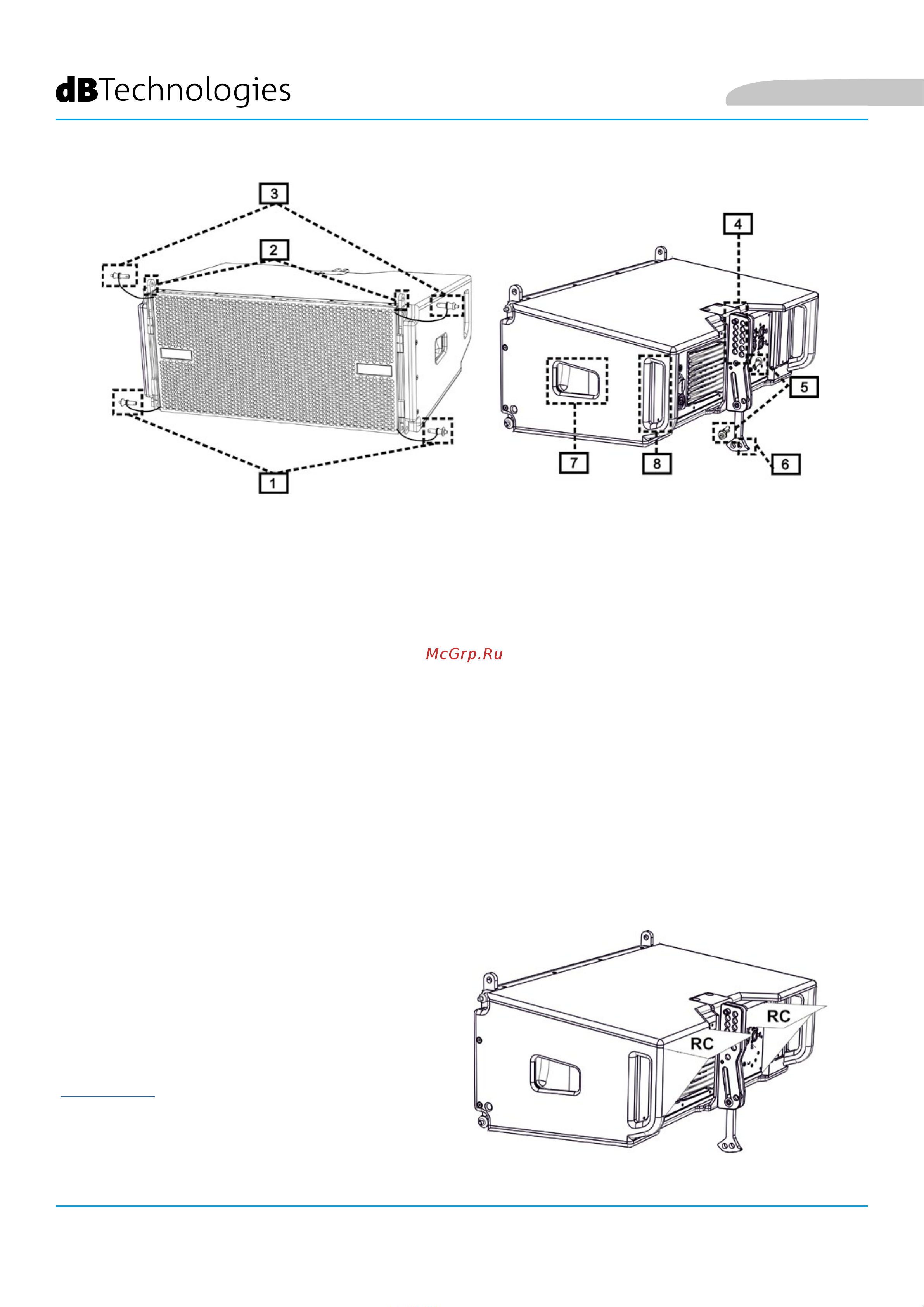

MECHANICS

The module ergonomics and the quick assembly in line arrays are guaranteed by:

FRONT SIDE

1) Lower fastening system for connecting other modules or the TF-VIO1/AF/VIO1/DSA-VIOL208 frame (in

own/stacked conguration depending on the accessory).

2) Retractable brackets for fastening to an upper module (or to a DRK-208 y-bar in own conguration).

3) Pins for fastening the retractable brackets in open/closed position [2].

REAR SIDE

4) Central bracket. Equipped with graduated label for selecting the angle of the line-array module.

Steps every 1° are possible (range: 0-10°).

5) Pin for xing the angle of inclination: it is necessary to insert only 1 pin in own conguration, 2 in

stacked conguration. See the gures on page 9.

6) Movable arm with slot. Inserted in bracket [4], it mechanically fastens the unit at the selected angle by

means of pins [5].

RH AND LH SIDES

7) Handle in a balanced position with respect to the weight of the cabinet.

8) Handle in the back position in the cabinet, facilitating the lifting of a module on the back, when the front

side is xed.

The VIO-L208 modules are also equipped with 2

rain covers on the rear side, in order to protect the

amplier from water and allow operation even in

critical weather conditions. They will be no longer

shown in the following drawings, for simplicity.

For further information regarding the y-bar (see the

ACCESSORIES section), please refer to the relevant

manual.
