DB TECHNOLOGIES VIO L208 [57/149] Stacked installation

VIO-L208

Cod. 420120268 REV. 1.0

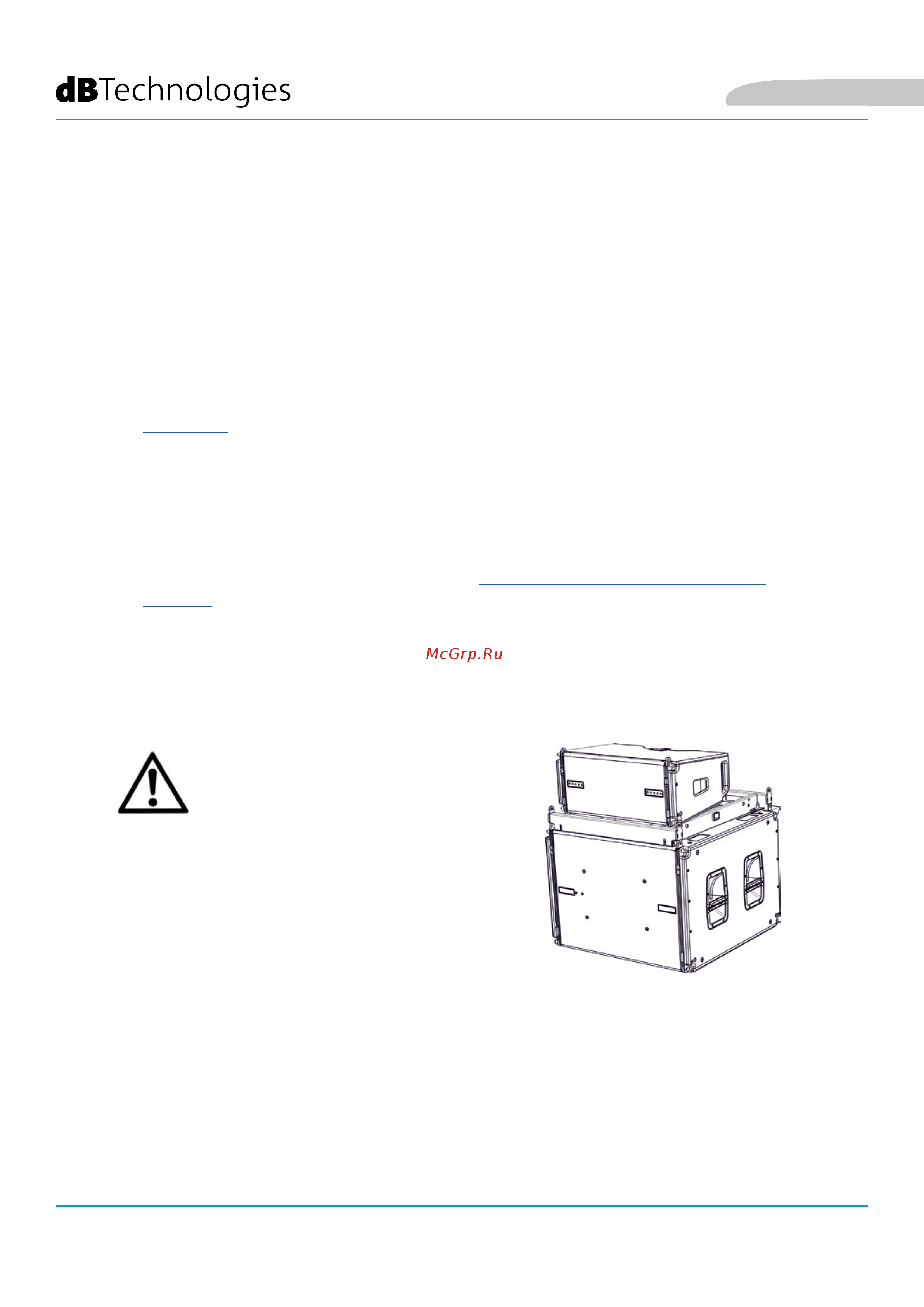

STACKED INSTALLATION

• A maximum of 3 modules can be mounted in stacked conguration on DSA-VIOL208 or

AF-VIO1 frames, so they can be used on a VIO S318, S218, S118R subwoofer.

• Use the DBTECHNOLOGIES COMPOSER to set the project parameters, for safety reasons.

• Position the selected frame on the subwoofer (installed on a at surface). For further

details on this accessory, refer to the relevant instructions.

• Add VIO-L208 modules one by one, with the previously-calculated angle, as shown in the

MECHANICS paragraph.

• Make sure that the local parameters of the different modules are correctly set on the

single amplier panels. In particular, verify according to the project, Audio Attenuation,

Speaker Coupling and High Frequency Compensation settings. As an alternative, all

parameters can be remotely edited in real time or at a later stage in case of line-array

connection through the RDNet network (DBTECHNOLOGIES NETWORK). Nevertheless,

project initial settings should at least be physically repeated on the VIO-L208 modules

before installation. For further information see DSP PRESET PARAMETERS AND REMOTE

CONTROL section.

• Make the audio daisy-chain, RDNet and power connections as described in previous

paragraphs.

English

WARNING!

• If the support surface presents

even the slightest inclination, it is

necessary to properly fasten using

the appropriate mechanical means

and/or installation straps.

• This requirement is also necessary

for more than 2 subs and more

than 3 VIO-L208 modules.
