4. CONNECTIONS

CONNECTION AND POWER DAISY CHAIN

MODULE 1

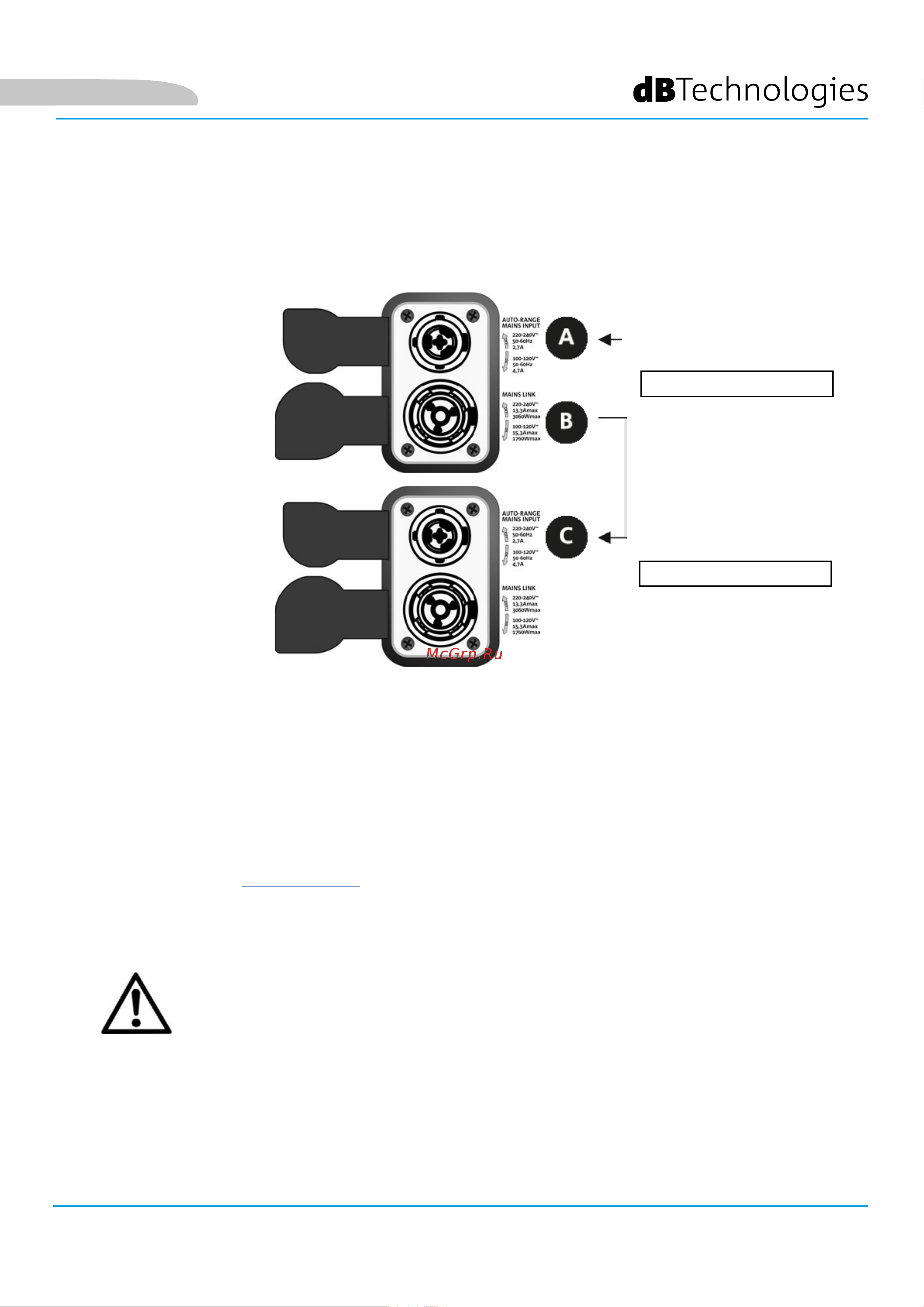

The gure above shows a general connection where a module 1

is over module 2. For this purpose, use cables with powerCON TRUE1® connectors (not provided).

• Connect the power supply of module 1 AUTO-RANGE MAINS INPUT (A).

• Link the power supply from module 1 to module 2 connecting the output MAINS LINK (B)

of module 1 to the input AUTO-RANGE MAINS INPUT (C) of module 2.

• Repeat this procedure until connecting the maximum permitted number of the line-array module

(refer to section SPECIFICATIONS).

WARNING!

• The cables must be properly sized and the system’s design, installation and

testing should be performed by qualied personnel only. AEB industriale declines

any responsibility in case of cables that are non-compliant, uncertied and

incompatible with the proper layout of the system and the regulations in force

for the country of use.

MODULE 2
