VIO-L208 Cod. 420120268 REV. 1.0

English

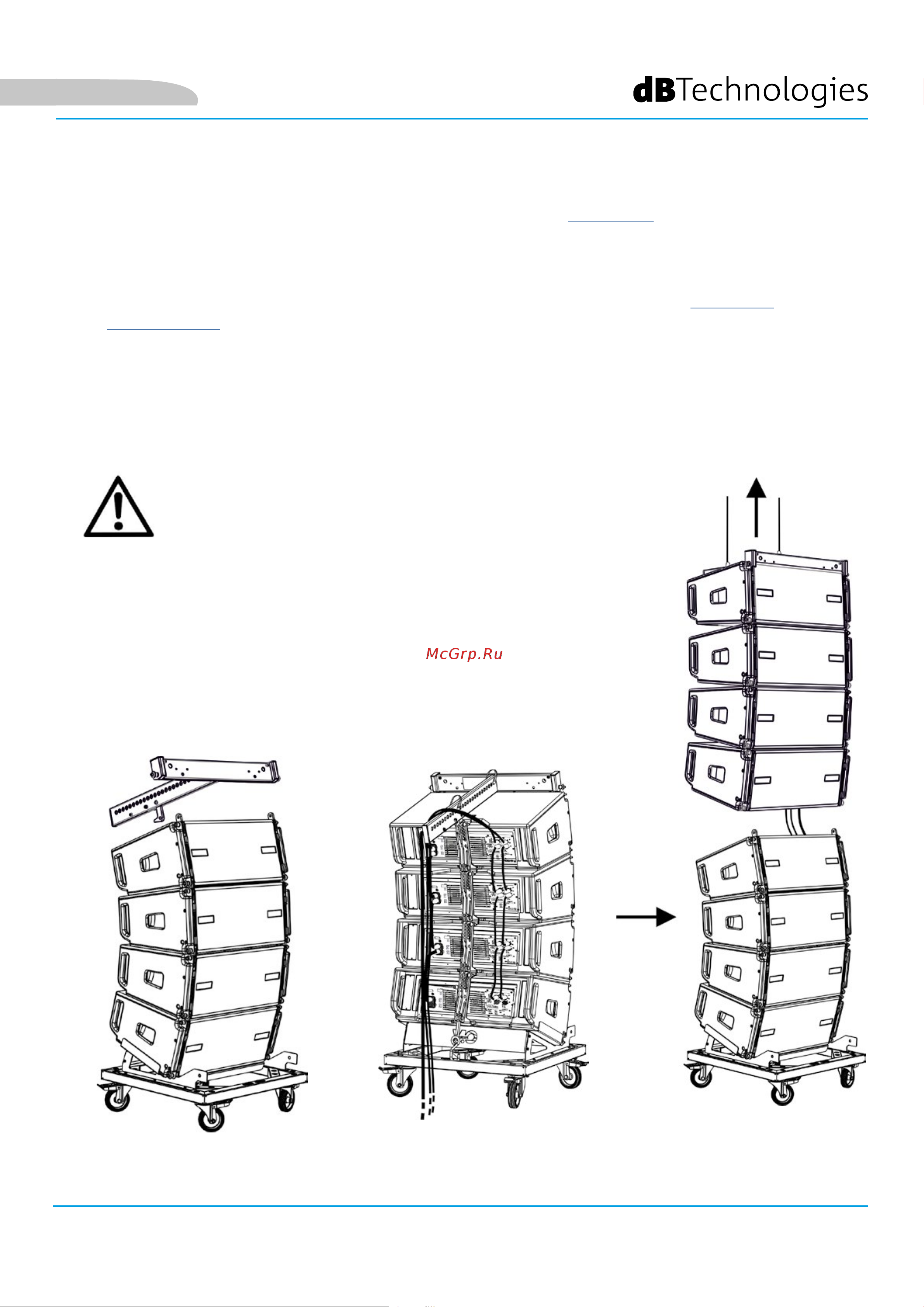

• Fix the brakes on the DT-VIOL208 wheels.

• Remove the safety strap of the dolly.

• Insert the movable arms [6] into the brackets [4] as shown in the MECHANICS paragraph.

• Insert the pins corresponding to the previously calculated angles inside the arms (for this operation,

you do not need to lift the modules).

• Carry out audio, RDNet and power supply re-link connections as described in the previous paragraphs.

To nd the maximum number of power connections in a re-linked system, see the TECHNICAL

SPECIFICATIONS section.

• Install the DRK-208 y-bar on the upper module according to the settings checked with

DBTECHNOLOGIES COMPOSER.

• Lift the 4 modules anchored to DRK-208 using one or two engines and the appropriate means for

rigging (not provided).

• Disengage the brakes from the DT-VIOL208 wheels and put dolly back.

DRK-208 ensures a loading capacity up to 260 kg / 573 lbs.

Any other conguration or information regarding the

system's data, such as the maximum capacity and hooking

points, must be veried prior to the installation using the

software dBTechnologies Composer (refer to the relevant

paragraph in this manual). It is available for free on the

website www.dbtechnologies.com under the DOWNLOADS

section.

WARNING!
