50
VIO-L208
Cod. 420120268 REV. 1.0
AUDIO AND RDNET SIGNAL CONNECTION AND DAISY CHAIN

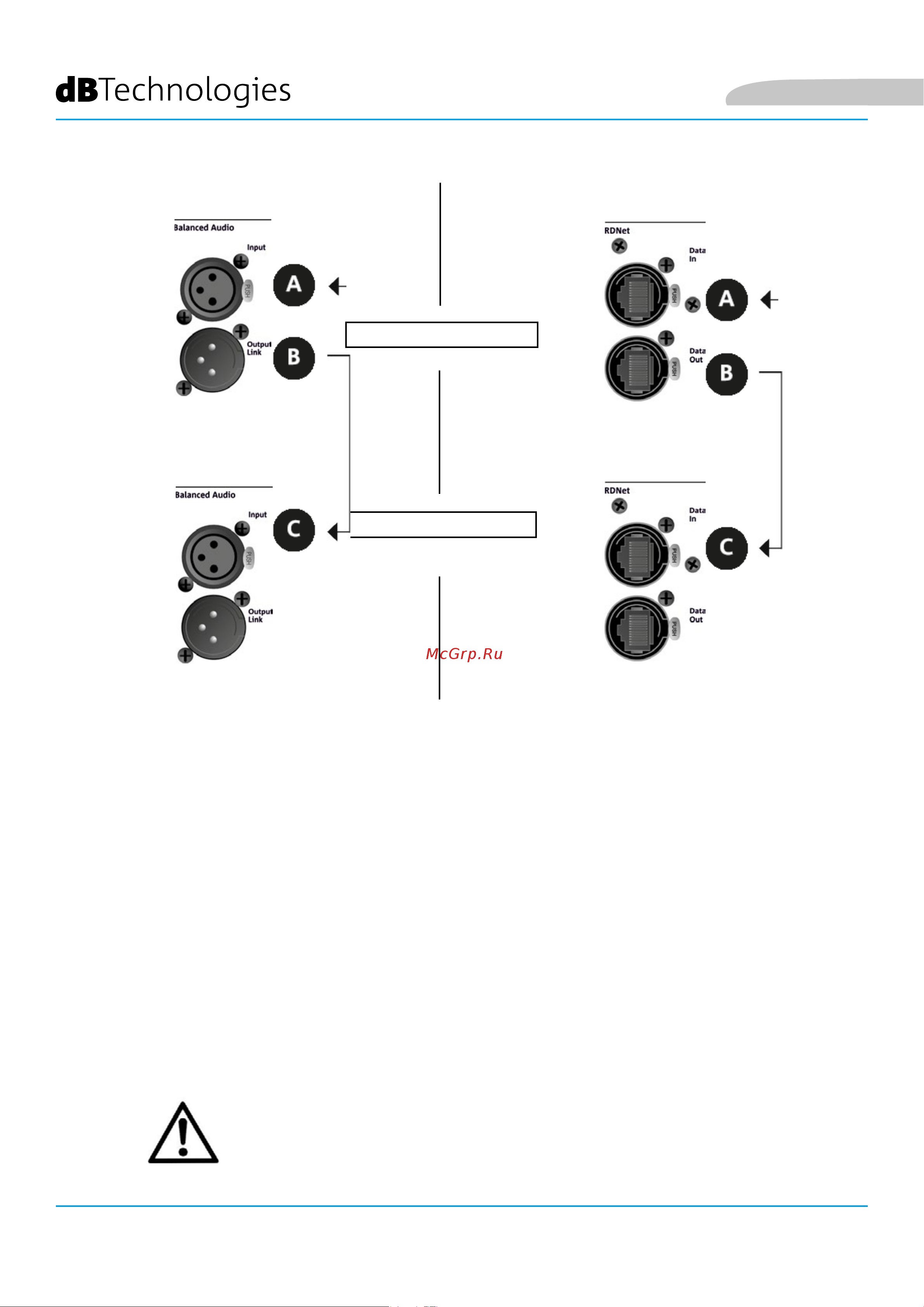

The gure above shows a general connection where a module 1
is over module 2 as well as the audio and network connections. To this end, use the not supplied
cables with XLR (audio) and etherCON/RJ45 (network) connectors. For further information on the
available types of cables, refer also to the image in next page.
For the audio connection, connect the cable originating from MIXER/LINE to the BALANCED
AUDIO INPUT (A) of module 1 of the line array. Re-link the signal between the rst and the
second module. For this purpose, connect the output BALANCED AUDIO OUTPUT/LINK (B) of
module 1 to the BALANCED AUDIO INPUT (C) of module 2.
Repeat the operation between the second and the third module and so on, until all modules of
the line array are connected.
For network connection, connect DATA IN connector (A) of module 1 to remote controller (RDNet
CONTROL 2 or RDNet CONTROL 8). Re-link the signal by connecting DATA OUT (B) of module 1 to
DATA IN (C) of module 2.
Repeat the operation between the second and the third module and so on, until all modules of
the line array are connected.
WARNING!
Replace any damaged cable to prevent malfunctioning and sound poor
quality.
MODULE 1
MODULE 2
English
