SVG MULTIVIEWER

Input/ Output Rear Panel

Overview

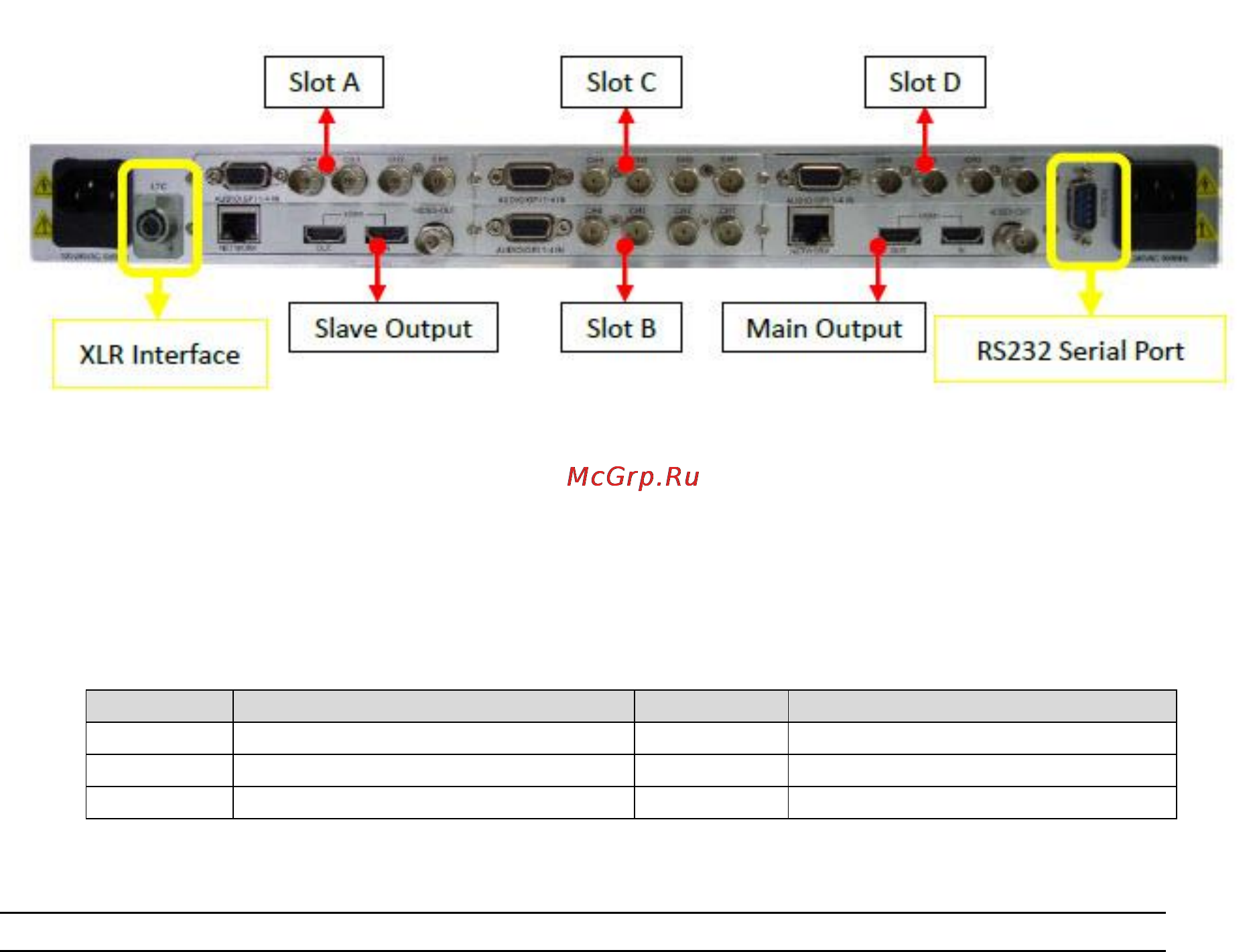

Chassis of SVG series is 1RU frame with six slots. The top row from left to right contains

Slot A, Slot C and Slot D. The bottom row from left to right contains Slot S, Slot B, and

Slot M. See the picture above.

Table-module type allowed inserting into each slot

Slot

Allowed Module Type

Slot

Allowed Module Type

M (Main)

Output Card only

Input Card only

S (Slave)

Input Card/Output Card

Input Card only

Note:

For Slot M; Only an output card may be inserted.

For Slot S; When the system is single output, an input card may be inserted. When it is dual

outputs an output card is inserted.

For example, when one input card is inserted into Slot A, up to four virtual channels can be

created from this input card as a channel group named group A. If there is no input card inserted

into Slot A, then there is no group A shown on the web browser page. This is the same for Slot B,

C and D. Input signals can be only displayed in the virtual channels which are created from the

same input card (any input on module A can be displayed on any of the four channels of module

A, any input on module B can be displayed on any of the four channels of module B and so on).
