Kramer SierraView™ SVG Multi Viewer [34/85] System settings

SIERRA VIDEO

System Settings

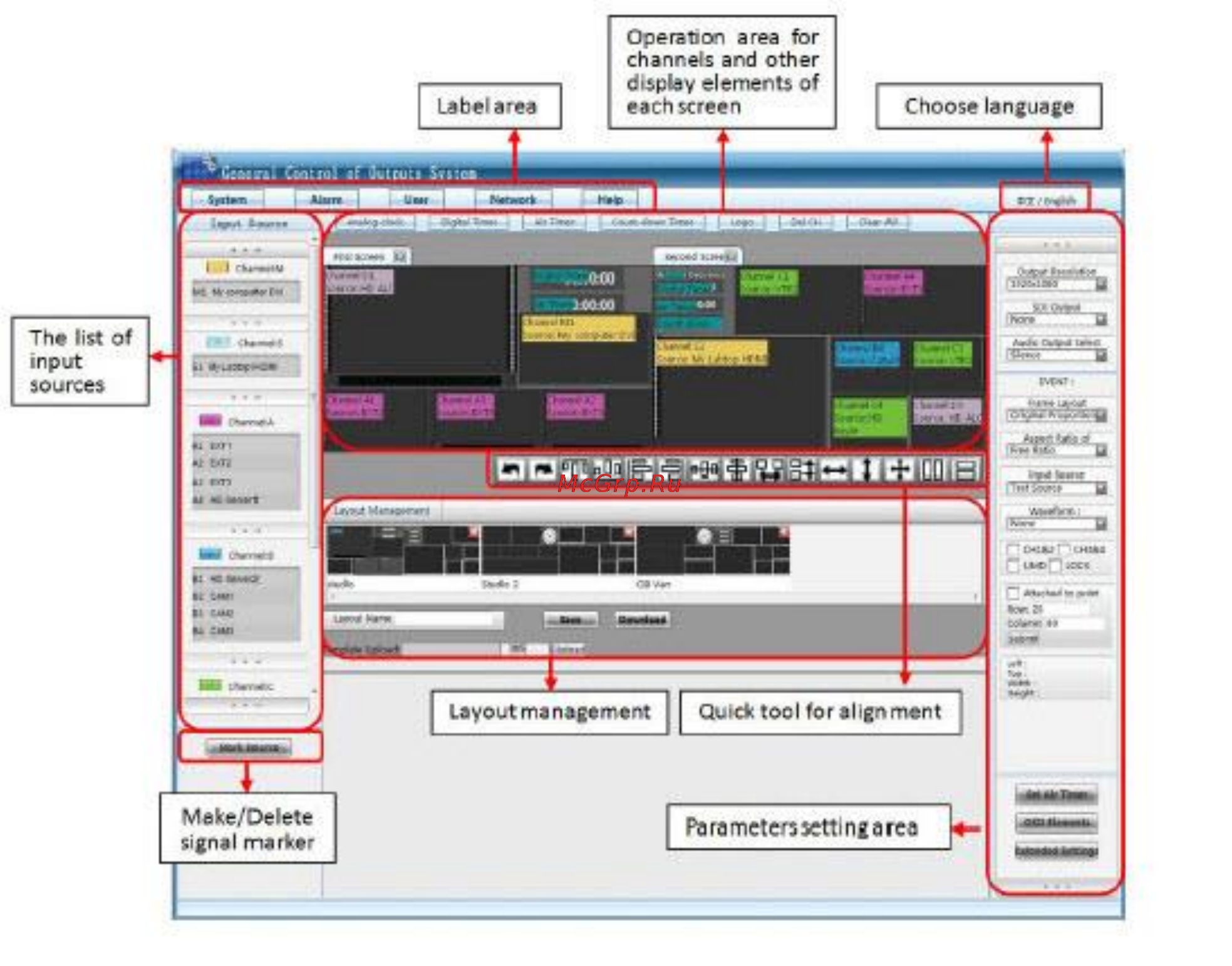

You can accomplish the basic configuration and operation in the System Settings, which

includes the following functions: Create or delete the channels, Add the clock and logo,

Align selected channels via the quick tools, Undo the previous operations and set

parameters such as output resolutions, aspect ratio, extended configuration, etc.
