SVG MULTIVIEWER
53
Check the box “Input Format” and the input resolution will be overlaid on the top of the
channel, otherwise, not. Input resolution is shown as 480i 60/525i 50/720p/1080i/1080p.
Check the box "Underscan" to underscan the selected channel.
Check the box “Safe Marker.” The pictures of CVBS and SD-SDI signals are marked
with 16:9 safe area markers while the pictures of HD-SDI signals are marked with 4:3
safe areas.
Check the box “Border.” The selected channel is shown with borders; otherwise, not.
The border color of each channel can be configured independently or you can Select All.

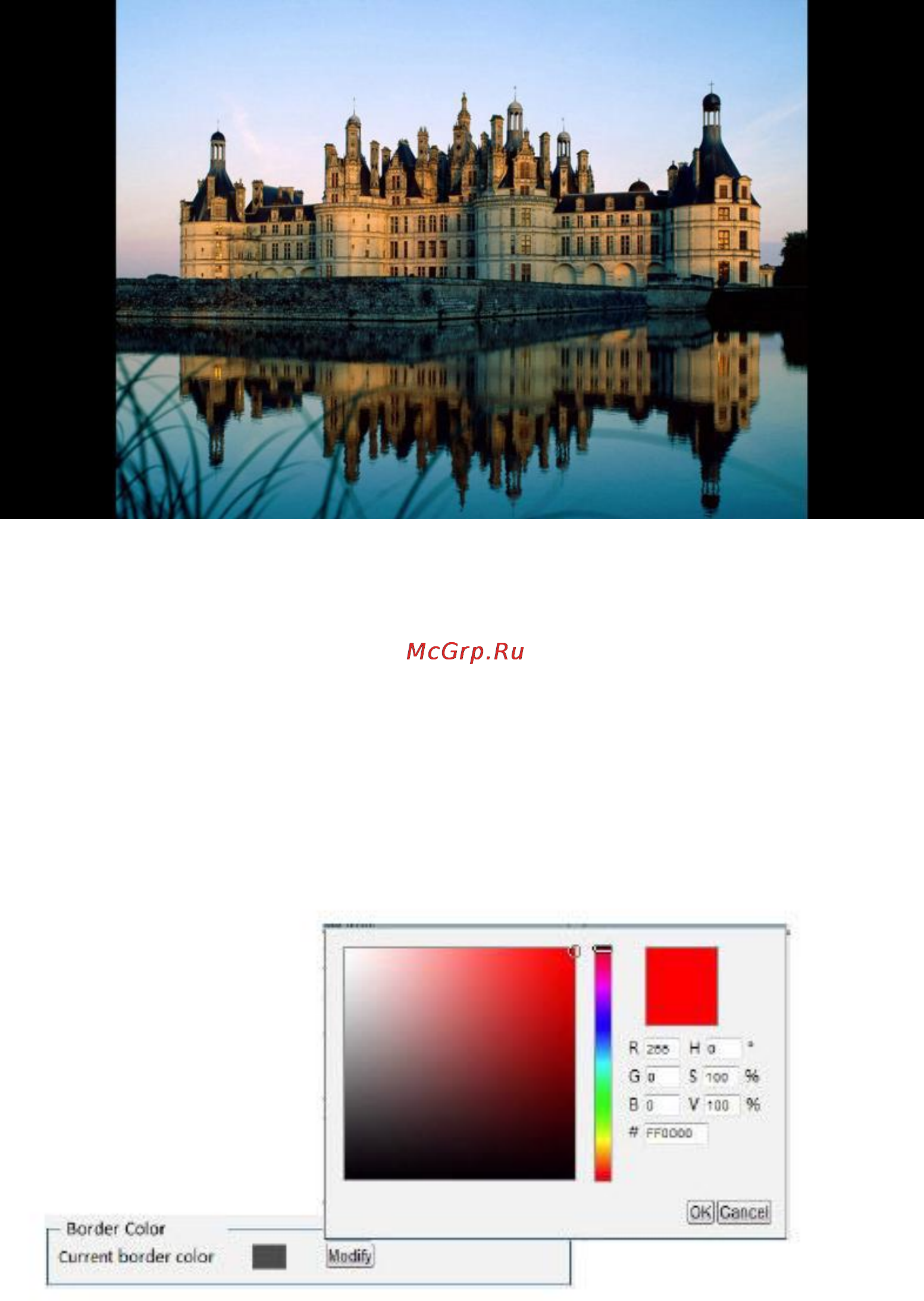

Border Color
Choose the target channel or all channels from the drop -down list, and click “Modify” to
show the color palette. Select the desired color and click “OK.” The current border color
is changed to the one selected.
