Kramer SierraView™ SVG Multi Viewer [69/85] Alarms detection settings

SVG MULTIVIEWER

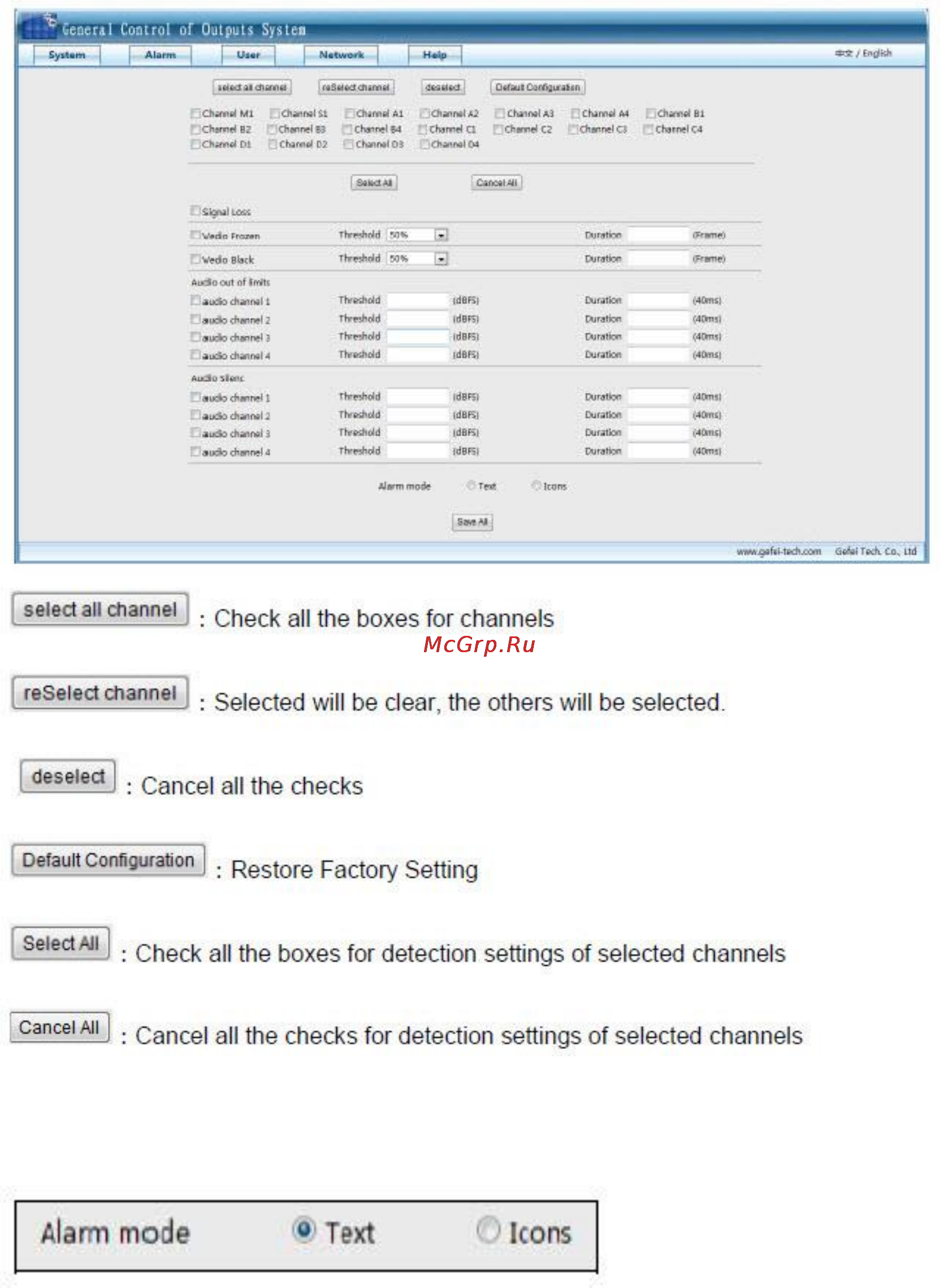

Alarms (Detection Settings)

SVG provides two kinds of warning mode: texts and small icons. And only one mode

takes effect at a time. Text is shown at the bottom of each channel. Video warning icon is

shown at left edge of each channel, while audio warning is at the right edge.
