Kramer SierraView™ SVG Multi Viewer [37/85] Create a video channel

SVG MULTIVIEWER

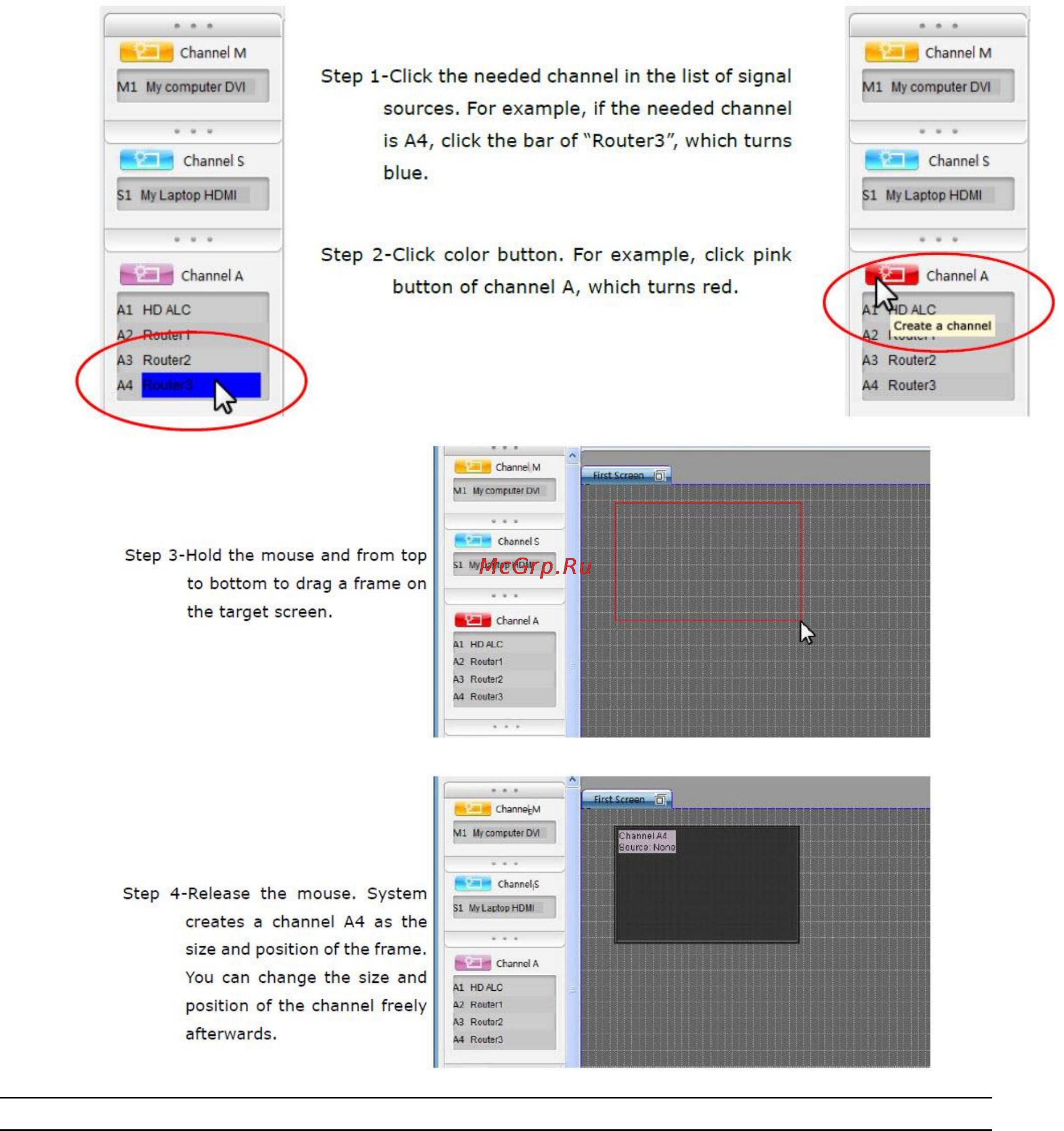

Create a Video Channel

Note:

If you skip step 1 (selecting a specific input) and operate step 2 directly, the channels created will

increment in the order of number 1 to number 4 as default inputs for each channel of that module.
