SVG MULTIVIEWER

Download Layout File

Click the “Download” button to save all the current layouts (up to 20 maximum layouts) in

the form of a BIN file. All the layouts in the layout setting area are saved as one file, so

they cannot be downloaded individually.

Upload Layout File

Click “Browse” button to find and upload the layout file you have downloaded before

(default is the Download folder). After successful uploading, the web browser page will

automatically refresh and the recalled group of layouts will appear in the layout display

area as thumbnails. Apply (recall) a layout by clicking its relevant thumbnail. Note that the

latest uploaded layouts will replace the entire original set of layouts. It is suggested to

Download current layouts before Uploading a new set as backup/safety precaution.

Individual layout recall is not supported.

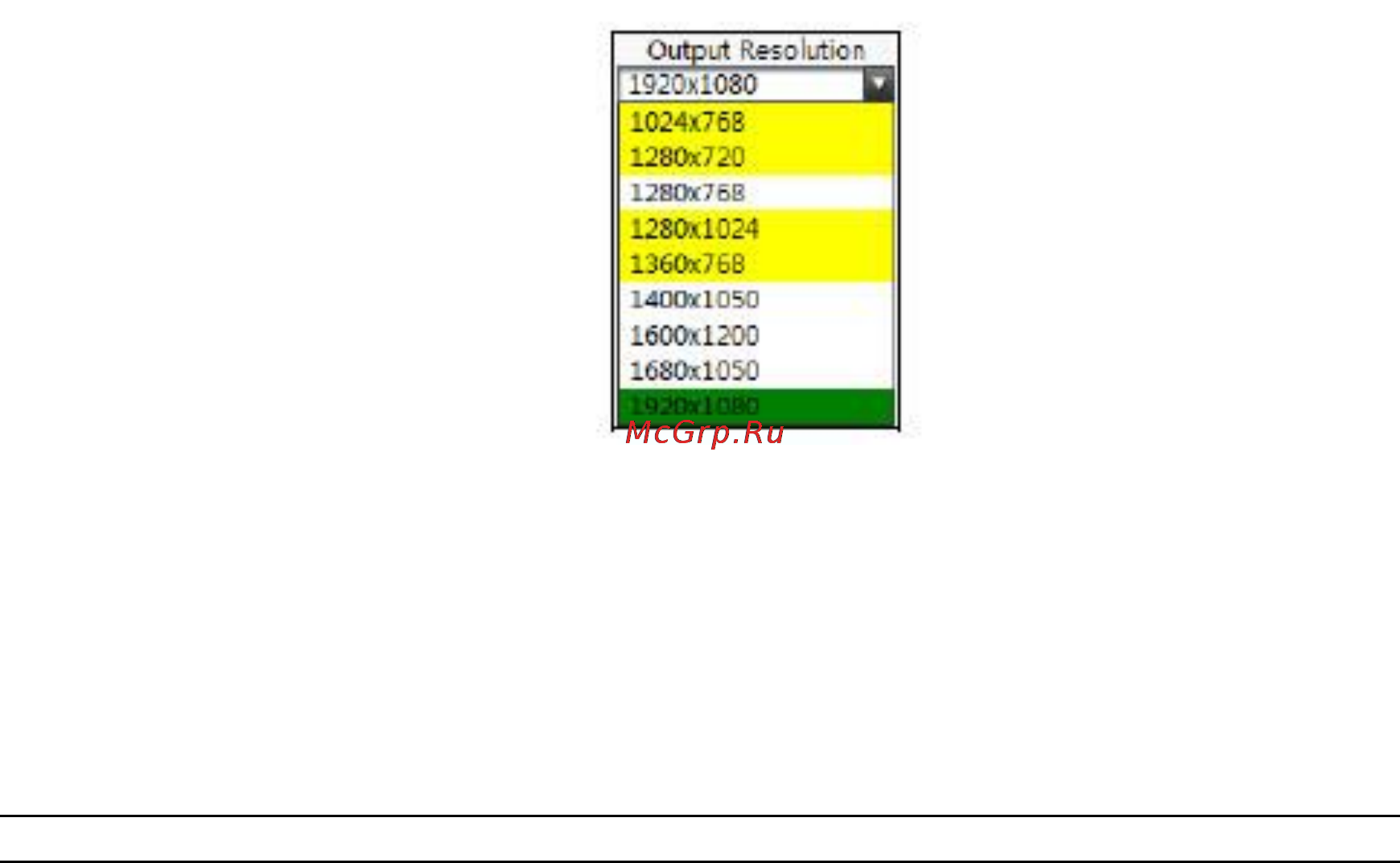

HDMI Output Resolution

Adjust the HDMI output resolution from main output card and slave output card (they can

be set to different resolutions). Color codes indicate EDID information from attached

monitor (yellow is supported resolution, green is native/recommended resolution, white

(no color code) indicates an unsupported resolution).

Choose the needed screen (Screen 1 or Screen 2) first, and choose output resolution in

the drop-down list. (Screen 1 is connected with output interface from main output card

and Screen 2 is connected with output interface from slave output card.)

Note:

If the system is single output system, there is no slave output, that is, there is no virtual “Screen

2” on the web.

For HDMI+HDSDI output card, HDMI output interface provides EDID detection from the

monitor. And the resolutions from EDID are highlighted in the dropdown list. See the

picture shown above. The output resolution of HDMI signal is up to 1920x1200p.

1024x768p, 1280x720p, 1280x768p, 1280x1024p, 1360x768p, 1400x1050p,

1600x1200p, 1680x1050p, 1920x1080p, 1920x1080i, 1920x1200p
