SVG MULTIVIEWER
13

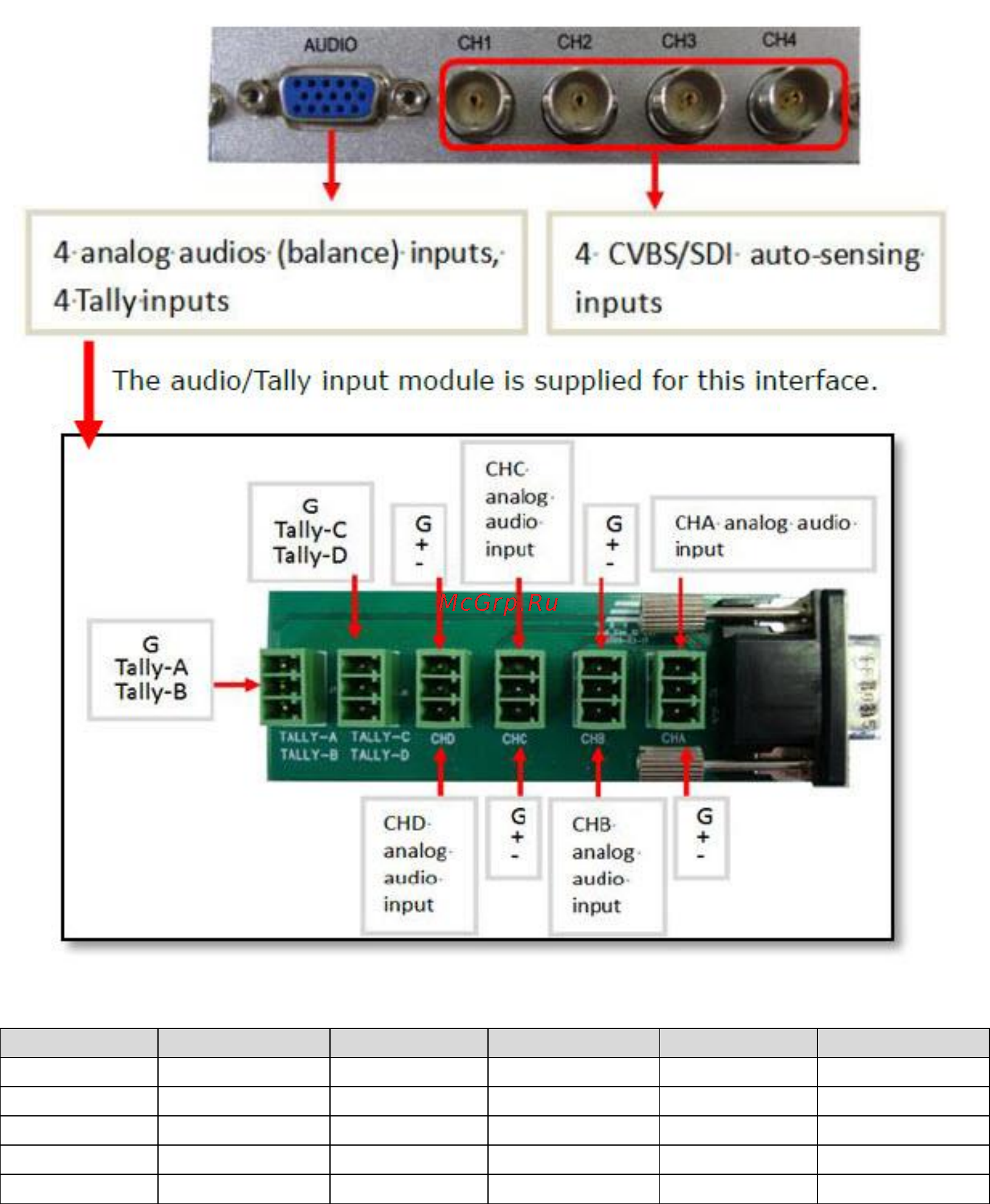

04-SVG-CVSD (CVBS/SDI Input module)
Definition of DB15 interface;
Pin #
Definition
Pin #
Definition
Pin #
Definition
1
Ch1-Aud
6
GND
11
2
Ch2-Aud
7
Ch1-Tally
12
3
Ch3-Aud
8
GND
13
4
Ch4-Aud
9
Ch2-Tally
14
5
Ch3-Tally
10
GND
15
Support formats：
CVBS: NTSC/ PAL
SDI: 480i 60/576i 50
Support SDI signal with embedded audio and indicate up to 4 audio channels of
Group1.
Audio/Tally input module supports one audio channel for each analog composite
video signal.
