Kramer SierraView™ SVG Multi Viewer [64/85] Extended settings

SIERRA VIDEO

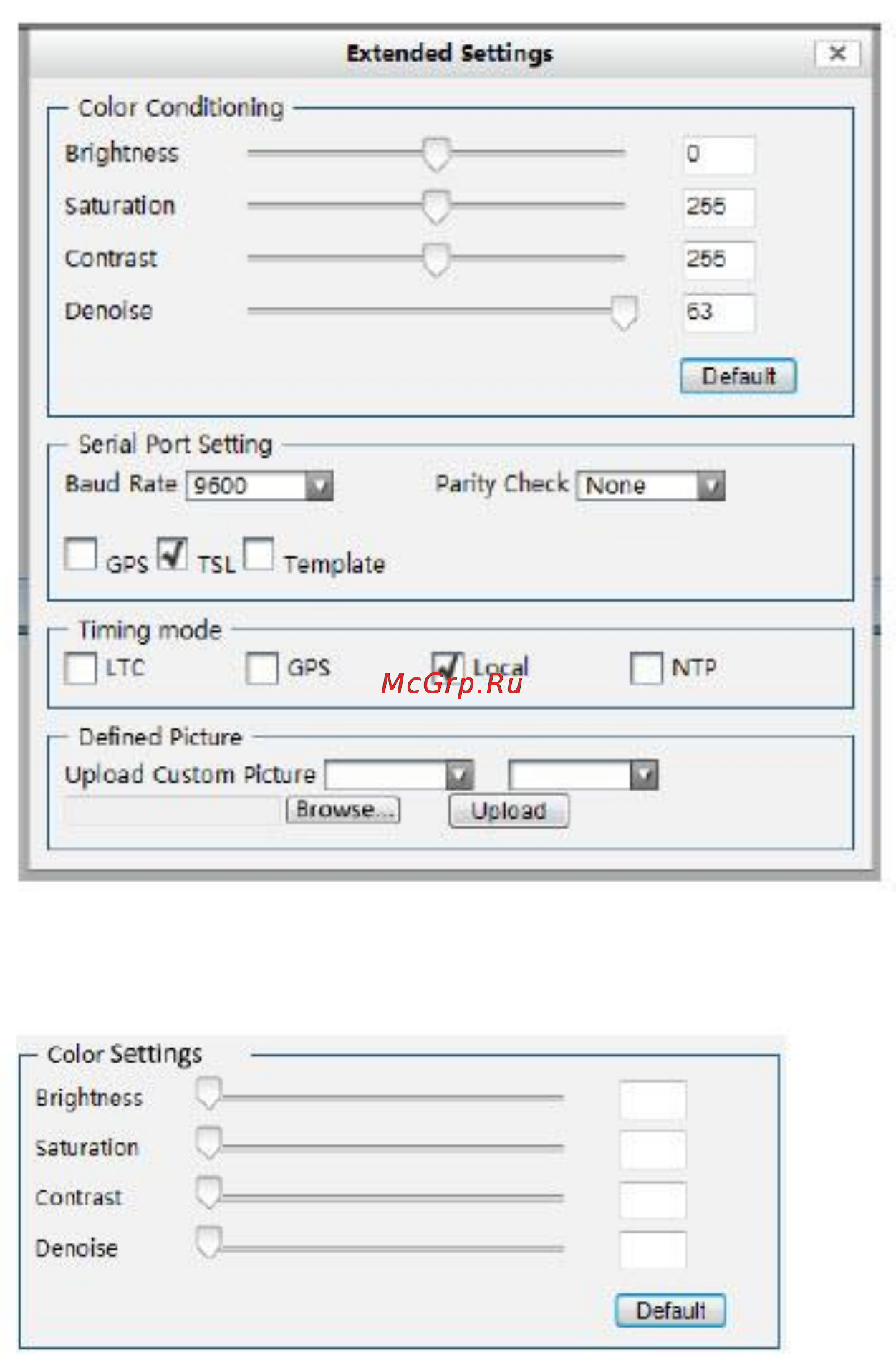

Extended Settings

Set Color Parameters

Brightness: to set the overall brightness and darkness of the full output display picture.

The range is from -512 to 511.

Saturation: to set the color of the full output display picture. The range is from 0 to 511.

Contrast: to adjust the clarity of the full output display picture. The range is from 0 to 511.

De-noise: The range of de-noise is from 0 to 63.

Default button: to restore to the factory default settings.
