SVG MULTIVIEWER
41
Audio Monitor Output Select
The processing mode of audio de-embedding is as follows for the HDMI+HDSDI output
card.
Audio monitoring for a certain video channel is achieved by monitoring the embedded
audio from either the HDMI or HDSDI output signals.
A. When the input source is an HD/SD-SDI signal, four channels of HD/SD-SDI
audio can be embedded into the HDMI/HDSDI output signal.
B. When the input source is an HDMI signal, four channels of HDMI audio signals
can be embedded into the HDMI/HDSDI output signal.
C. When the input source is CVBS signal, one channel of the analog audio signal
can be embedded into the HDMI/HDSDI output signal via the Audio/Tally input
module attached to the CVBS input module.
Note:

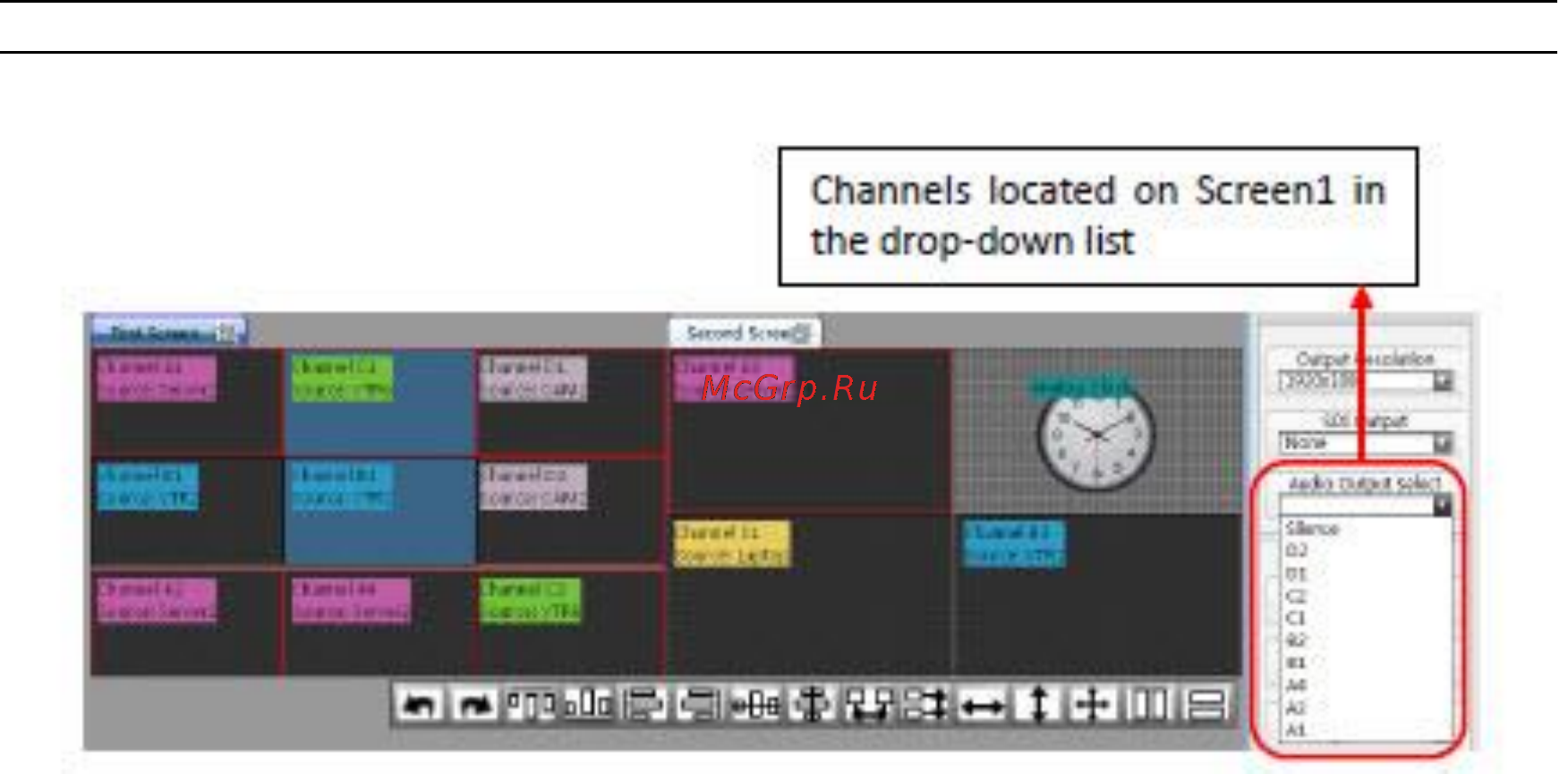

If system is single output system, there is no virtual “Screen 2” on the web
Choose Screen 1. Available channels in the drop-down list are all located on Screen 1.
choose one of them. The audio signals from the currently selected input source,
displayed in the Audio Output Select menu, are embedded into the HDMI and HD-SDI
output signals of the Main output card.
