Output Rear Panel

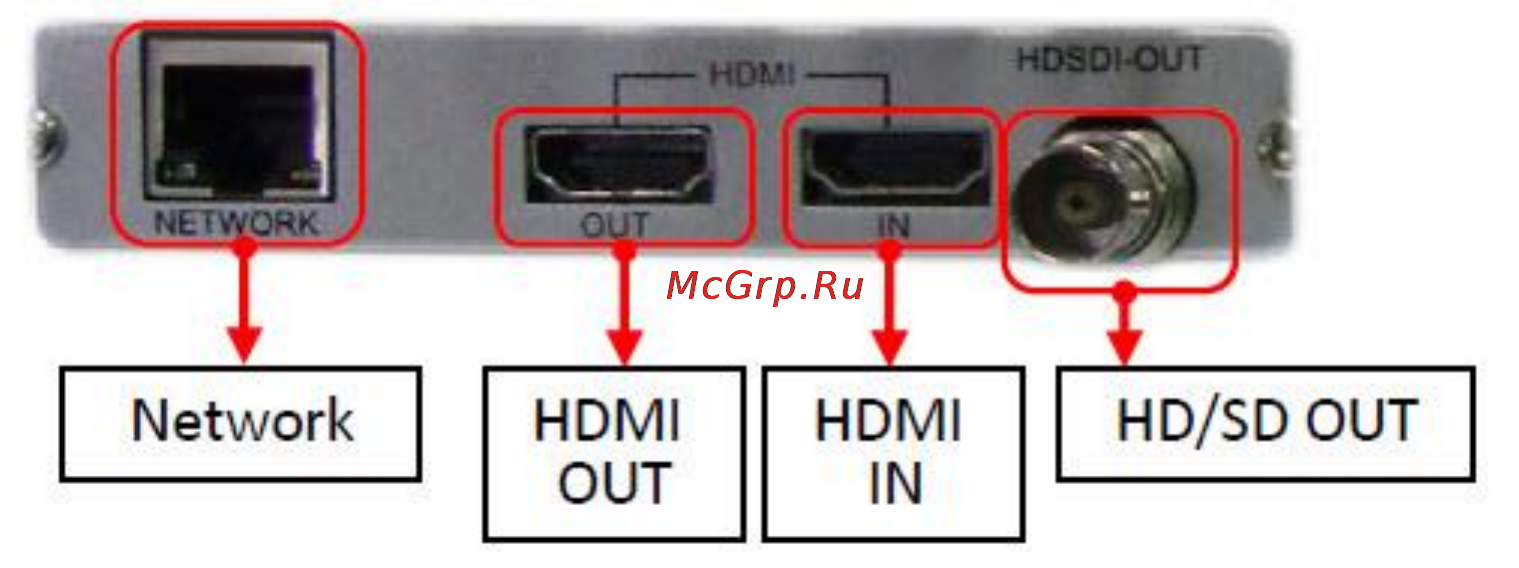

04-SVG-OM-HDHDMI (HDMI/HD/SDI Output Card)

Each output module provides HDSDI and HDMI dual outputs. Plus, on each output

module, there is an HDMI input and RJ45 interface for Web server connection.

Network

RJ45 interface with 10/100/1000M auto-detection. When the system has dual output

cards, both output cards are configured by the web browser with the network interface

(RJ45) on main output card only. The default IP address is 192.168.1.76. When facing

the rear panel of chassis, if the output card is on the left, it is a slave output card.

Please Note: The RJ45 interface on the slave output is not used and has no function.

HDMI OUT

Two HD/SD-SDI audio channels, four HDMI audio channels, or one analog audio signal

can be embedded into the HDMI output signal. Users can select audio source via the

web browser control to monitor. The output resolution of HDMI signal is up to 1920x1080

or 1920x1200.

The output resolutions are provided as below:

1024x768p, 1280x720p, 1280x768p, 1280x1024p, 1360x768p, 1400x1050p,

1600x1200p, 1680x1050p, 1920x1080p, 1920x1080i, 1920x1200p

HDMI In

HDMI input interface. It is compatible of accepting both HDMI and DVI input signals. It

also supports HDMI with embedded audio. There is no display of UMD and audio meters

for this HDMI channel. However, it does support HDCP protocol. The HDMI input channel

is always layered on the top of all the channels from input cards.

Supported input resolutions of the HDMI/DVI signals:

Video:

SD: 480i 59.94, 576i 50

HD: 720p 50Hz/60Hz

1080i 50Hz/60Hz

1080p 24Hz/25Hz/30Hz

1080p 50Hz/60Hz
