Kramer SierraView™ SVG Multi Viewer [30/85] Edit input source

SIERRA VIDEO

Edit Input Source

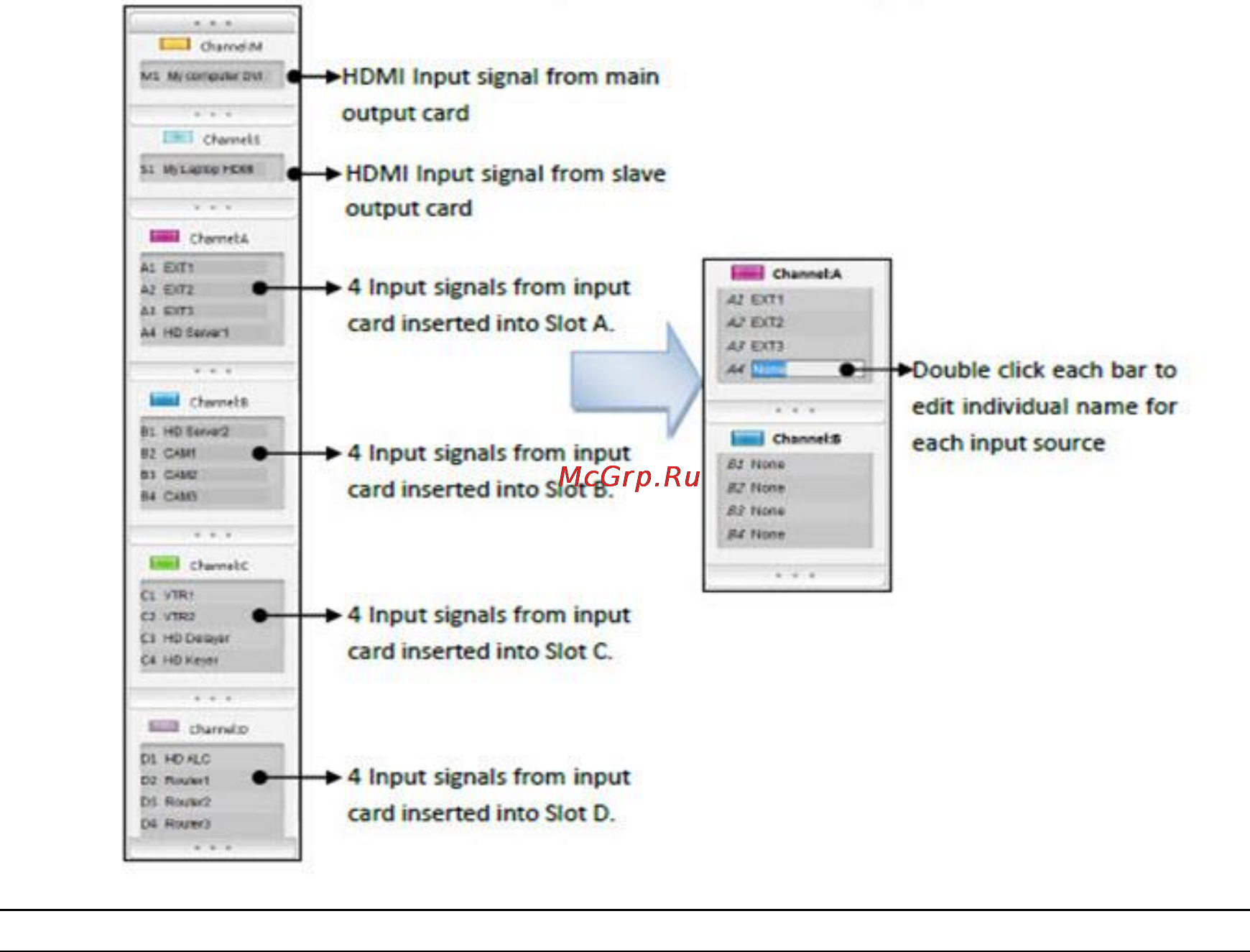

Edit names of each source for each input module's channel on the left column.

Note:

When the system is a single output system, and there is an input card inserted into slot S, then

group S includes channel S1, S2, S3, and S4 (S1 only if there is an output card in slot S).
