SVG MULTIVIEWER

Tally Settings

Select the needed channel in the drop-down list.

Then check the box to enable Tally Display function.

The system supports single Tally display. Individual channel Tally can be achieved via

both GPI (with the mini-adapter GPI/TALLY interface on CVSD and HD/SD/3G input

modules but not the HDMI input module) and Serial port.

Via GPI-Static Tally

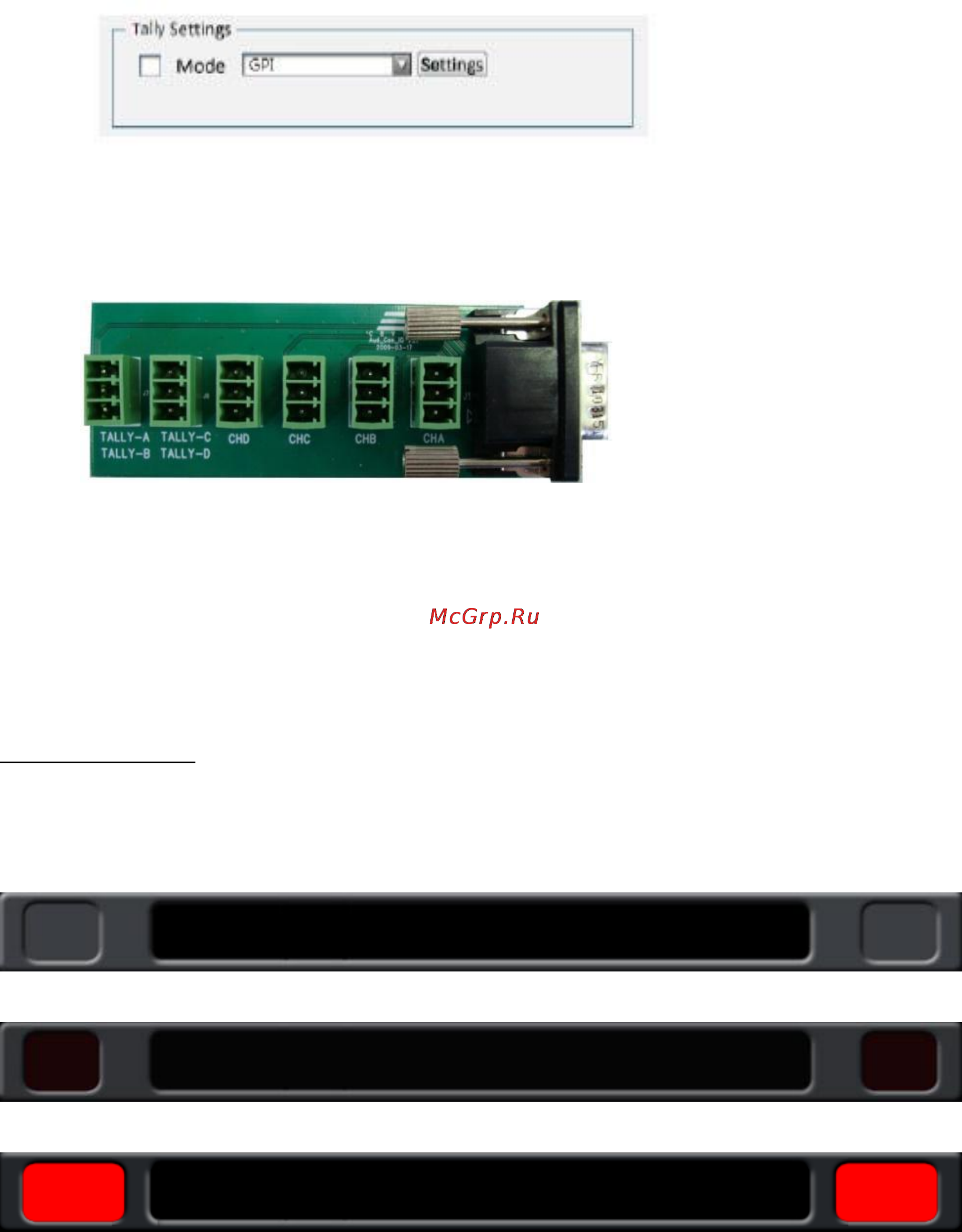

Choose “GPI” in the drop-down list to enable static Tally.

Static Tally is applied with the mini-adapter GPI/Tally input module as below.

If you check the box on Tally Settings:

When there is a high level trigger, the TALLY area will turn light red. If there is no high

level trigger, it will remain dark red.

If the box is left unchecked on Tally Settings:

No matter whether there is a high level trigger, or not, the TALLY area will turn gray.

A High level trigger is a voltage applied that is higher than 3.3VDC and lower than 7VDC.

Please Note: Voltages higher than 7V will overload the Tally circuit and cause

irreversible damage to the tally circuitry. This will result in permanent 'high' tally Red

lights on all channels of that input module.

Users choose which channel to modify from the drop-down list.

Unchecked box, the Tally area will turn grey.

If the box is checked and there is not a high level trigger, the Tally area will turn dark red.

If the box is checked and there is a high level trigger, the Tally area will turn light red.
