Kramer SierraView™ SVG Multi Viewer [39/85] Choose an input source

SVG MULTIVIEWER

Choose an Input Source

Note:

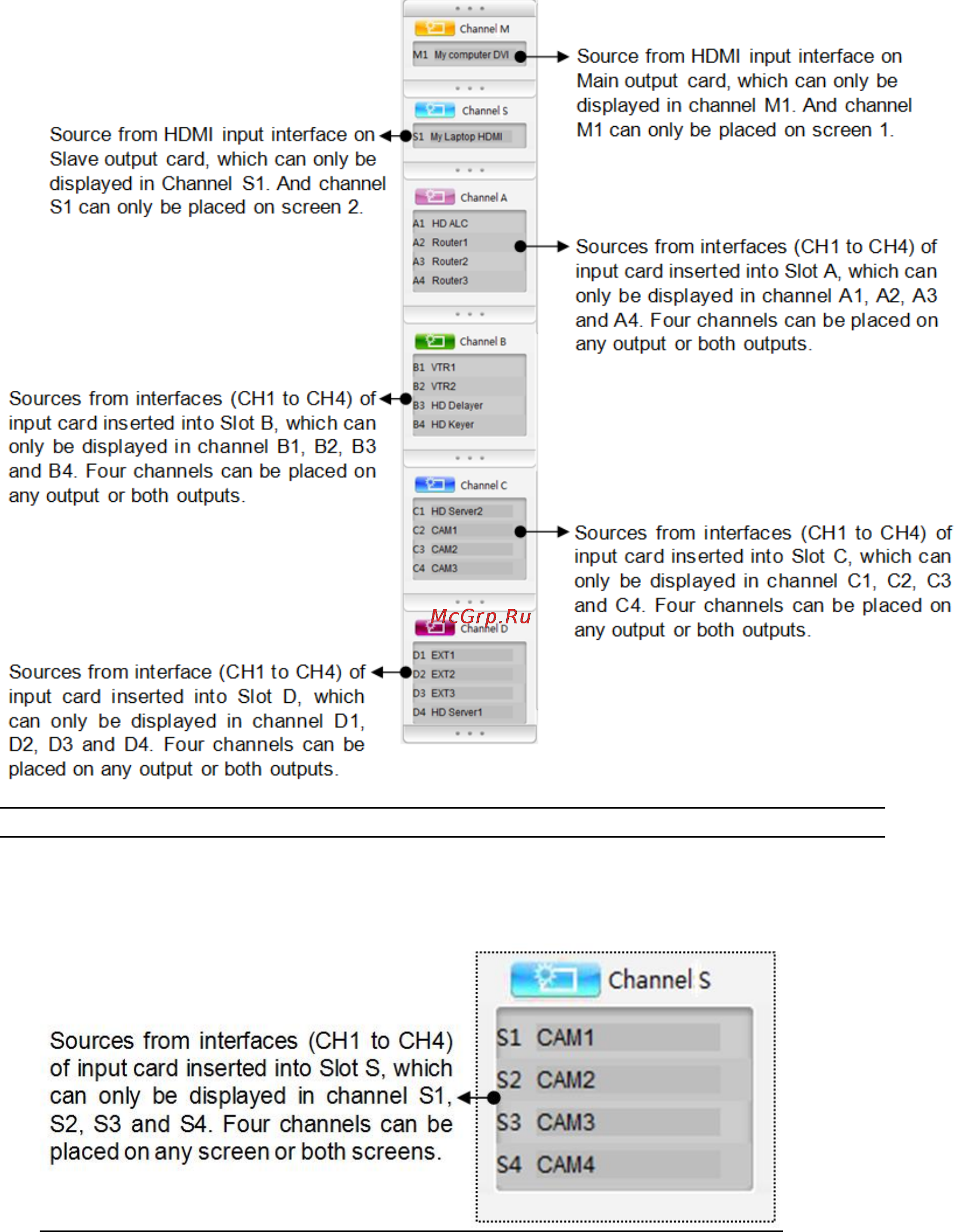

1. Input signal sources from each input card can only be displayed on that module's four

channels. In other word, input signals and channel group are binding together.

2. When system is single output system, and there is an input card inserted into Slot S, then

group S includes channel S1, S2, S3 and S4, not just S1 anymore.
