HDSDI/HDMI Output Resolution

SDI Output

For the HDMI+HDSDI output card, the HD/SD-SDI and HDMI interfaces both output the

same video signal at the same time. But the SDI output format differs from HDMI output

signal, which can be set independently. Embedded audio is the same for both outputs.

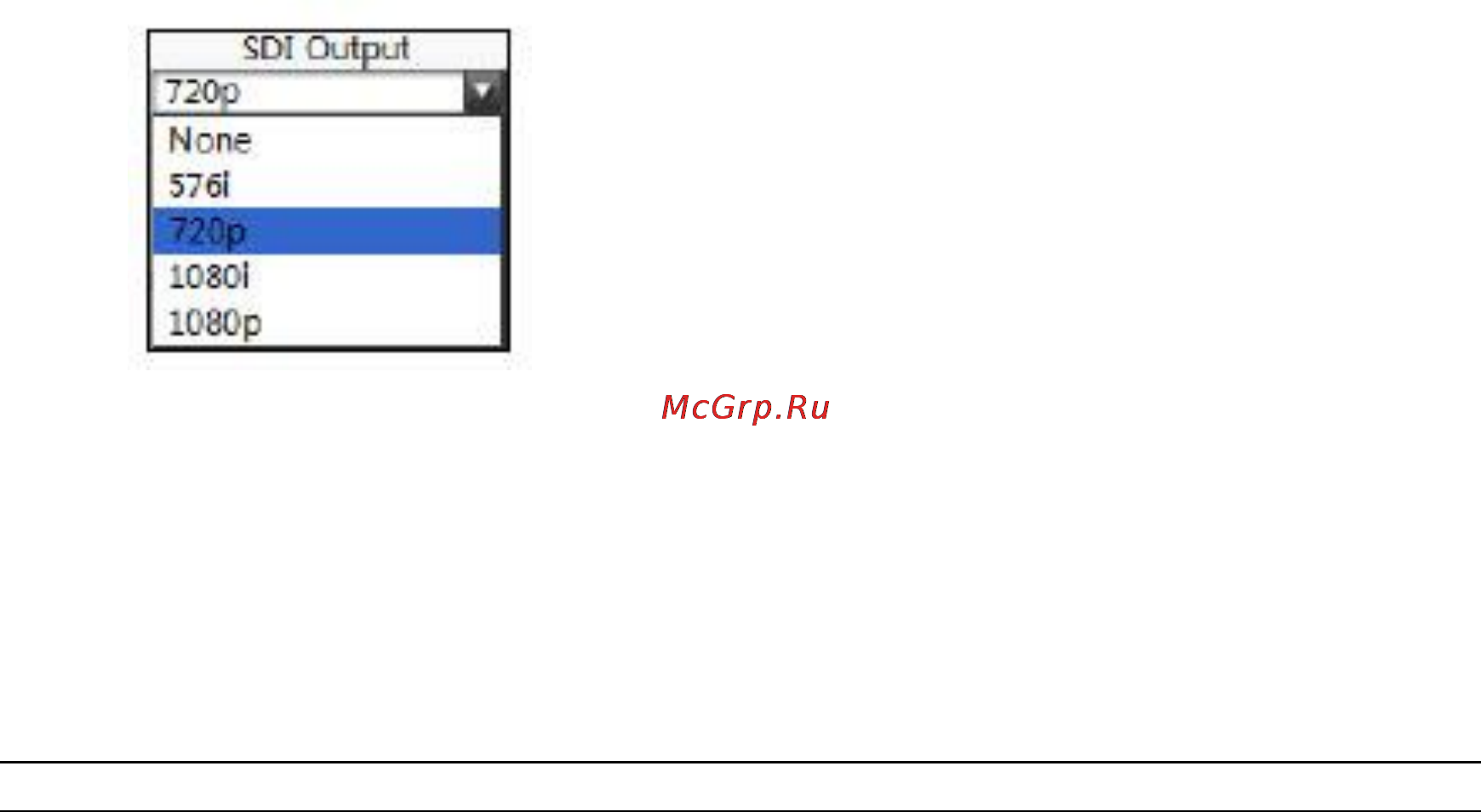

Choose the needed screen (Screen 1 or Screen 2), and choose output format of the

HD/SD-SDI signal in the drop-down list. (Screen 1 is connected with output interface from

the main output card and Screen 2 is connected with output interface from the slave

output card).

Note:

If the system is single output system, there is no slave output, that is, there is no virtual “Screen

2” on the web page.

Configurable output formats:

None, 576i 50(PAL only), 480i 59.94 (NTSC only), 720p, 1080i, 1080p

PAL/NTSC TV format is set on the CBVT.html web browser page:

IP: 192.168.1.76/cbvt.html

After any TV format selection change, a system restart is required.
