Kramer SierraView™ SVG Multi Viewer [57/85] Osd elements

SVG MULTIVIEWER

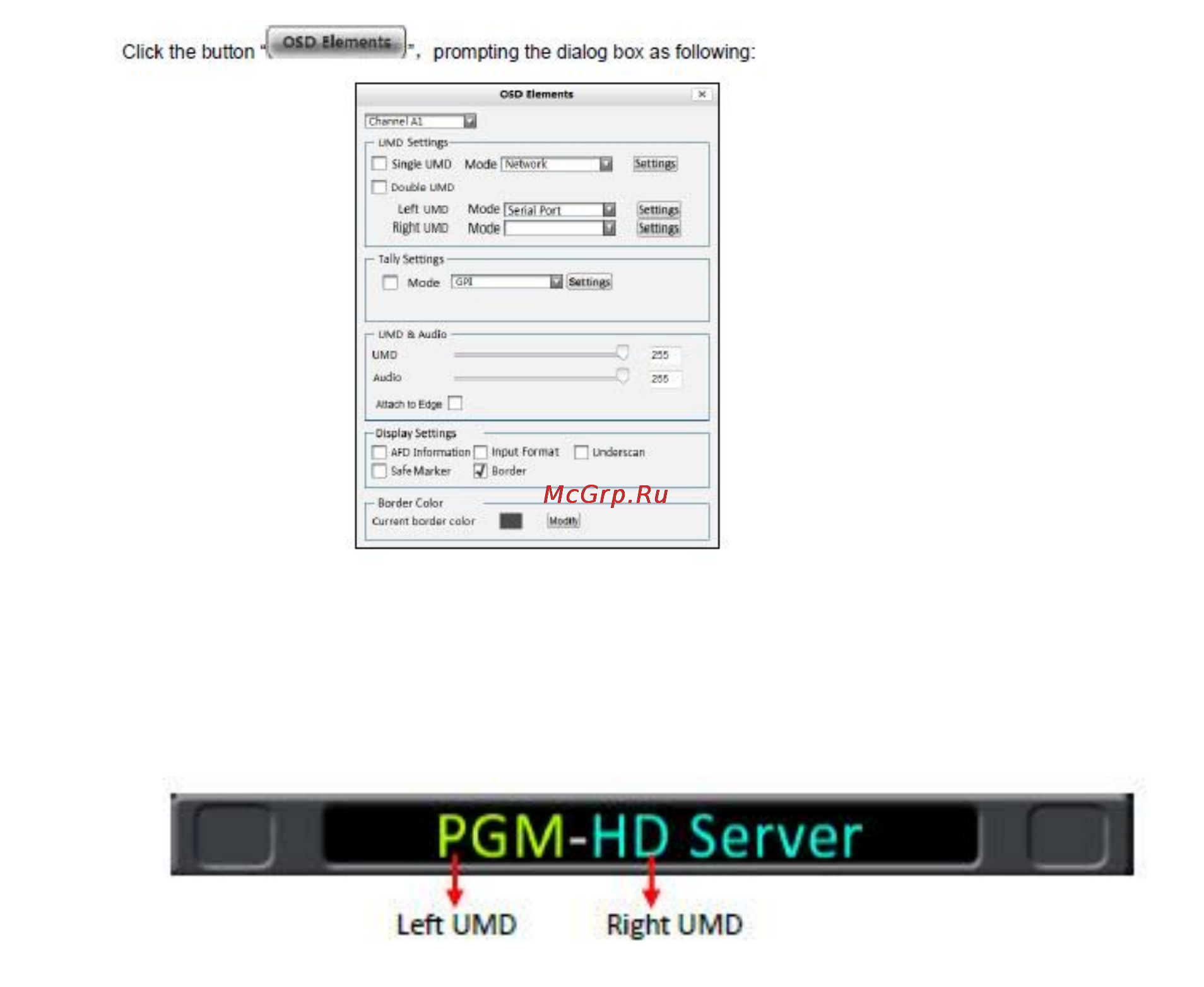

OSD Elements

UMD Settings

First, select the needed channel in the drop-down list (the last selected channel is shown

by default). The system supports single or dual program UMD displays. Dual UMD is

composed of left UMD and right UMD. There is a white line (hyphen) between the left and

right UMD text.

Single UMD and left / right UMD of Dual UMD can be configured separately.

UMD text can be edited via both network (web browser) and Serial port (remote).

Via network-Static UMD

Choose “Network” in the drop-down list, and click “Settings”.
