SIERRA VIDEO

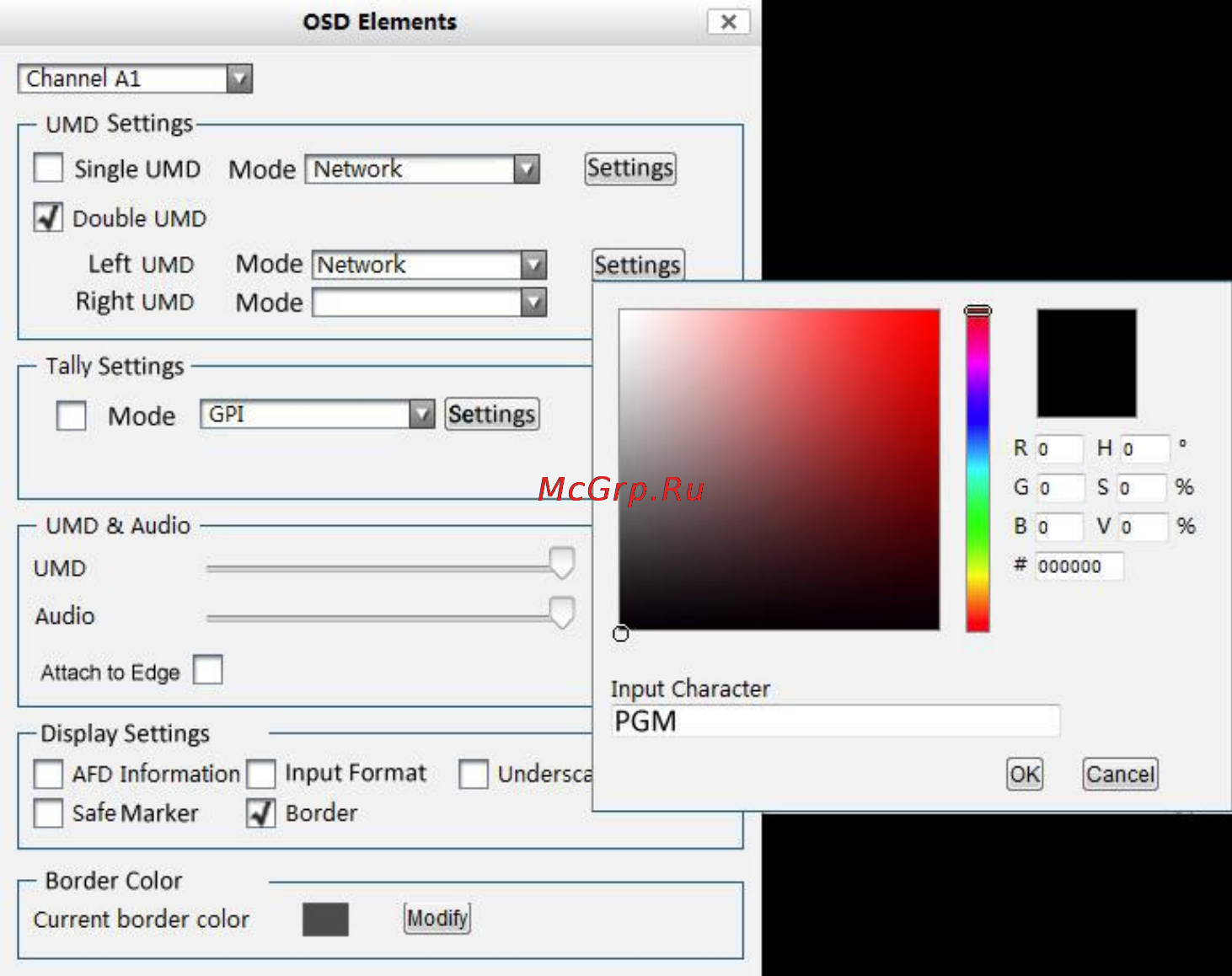

Upload UMD Text

Type the characters in the blank bar, change the color of characters. Click “OK” to submit

after all parameters are entered and all characters will be displayed in the UMD.

To clear the UMD

Enter a “space” and then click “OK.” The characters in UMD area will be cleared.
