SVG MULTIVIEWER

Alignment Tools

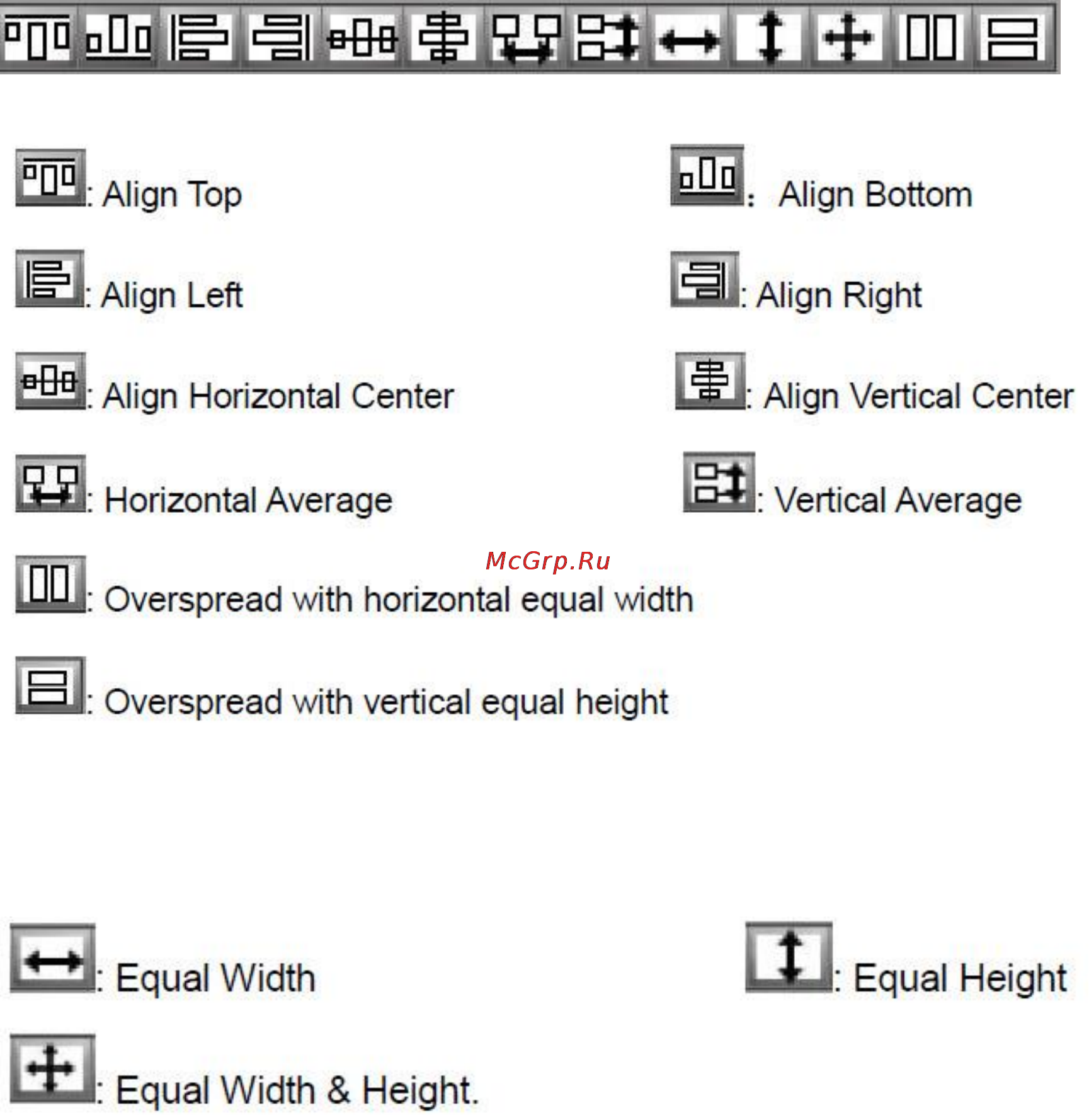

All operations among these windows are aligned to the last selected one.

The buttons below are not only for channels, but also for UMD & Audio Meters as well.

The selected audio meter is adjusted according to another one in the same channel. The

buttons below can’t be applied for audio meters from different channels.

Except for these alignment tools, the SVG software supports hotkeys on the keyboard,

such as direction key “↑ ↓ ← →”, in order to move channels in this area.
