Kramer SierraView™ SVG Multi Viewer [77/85] Communication protocols

SIERRA VIDEO

Communication

Protocols

Serial Protocol

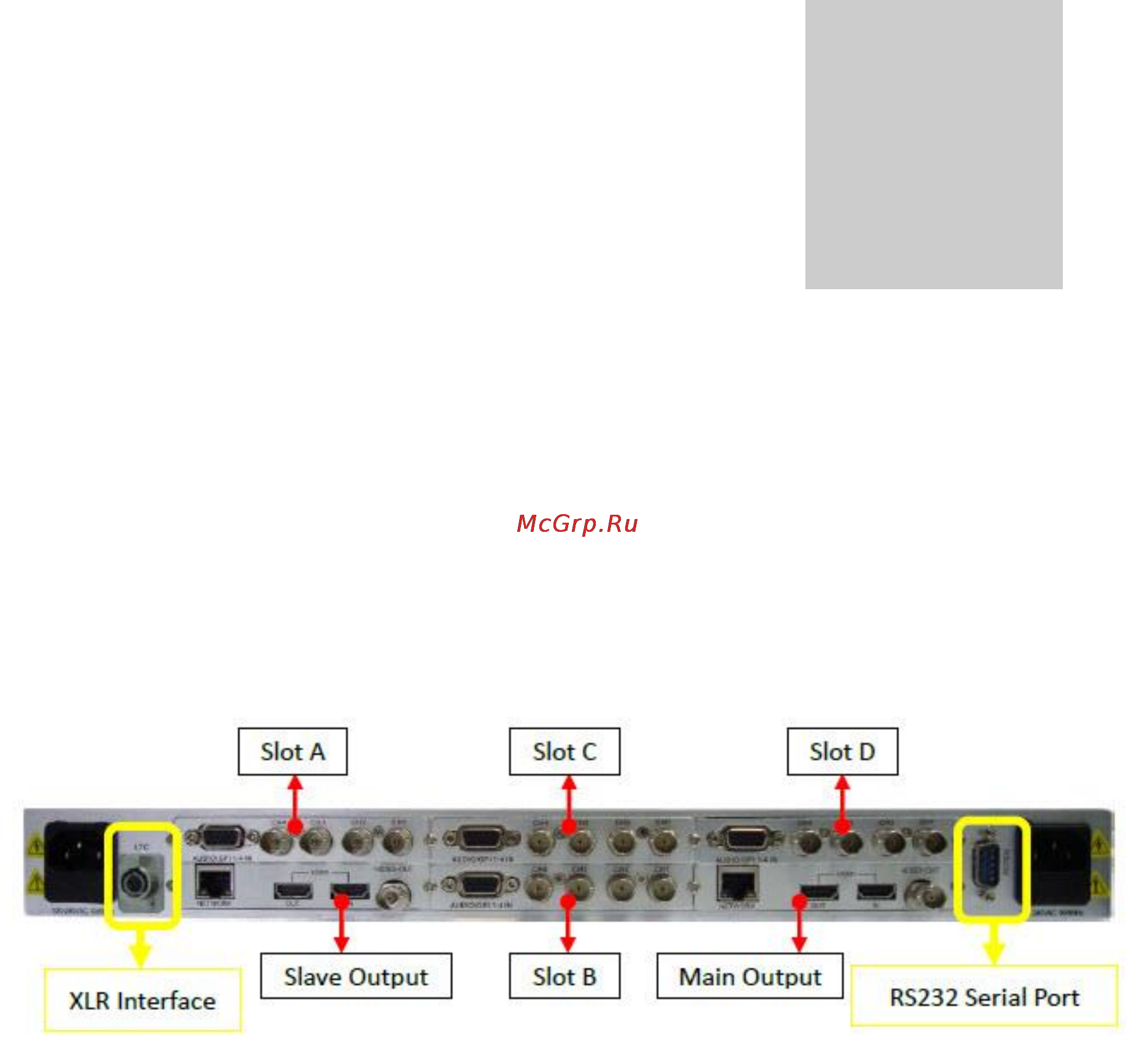

The SVG MultiViewer accepts remote serial commands from controllers and serial port

communication applications and devices via the RS232 Serial Port.

Templates can be recalled serially to make changes to the layout of the output(s).

Additionally, since version 2.3715S, the HDHDMI Output Module equipped SVG can

support selecting of audio channels to monitor at the display(s) via embedded HDMI or

HDSDI output(s).
