SIERRA VIDEO

Help

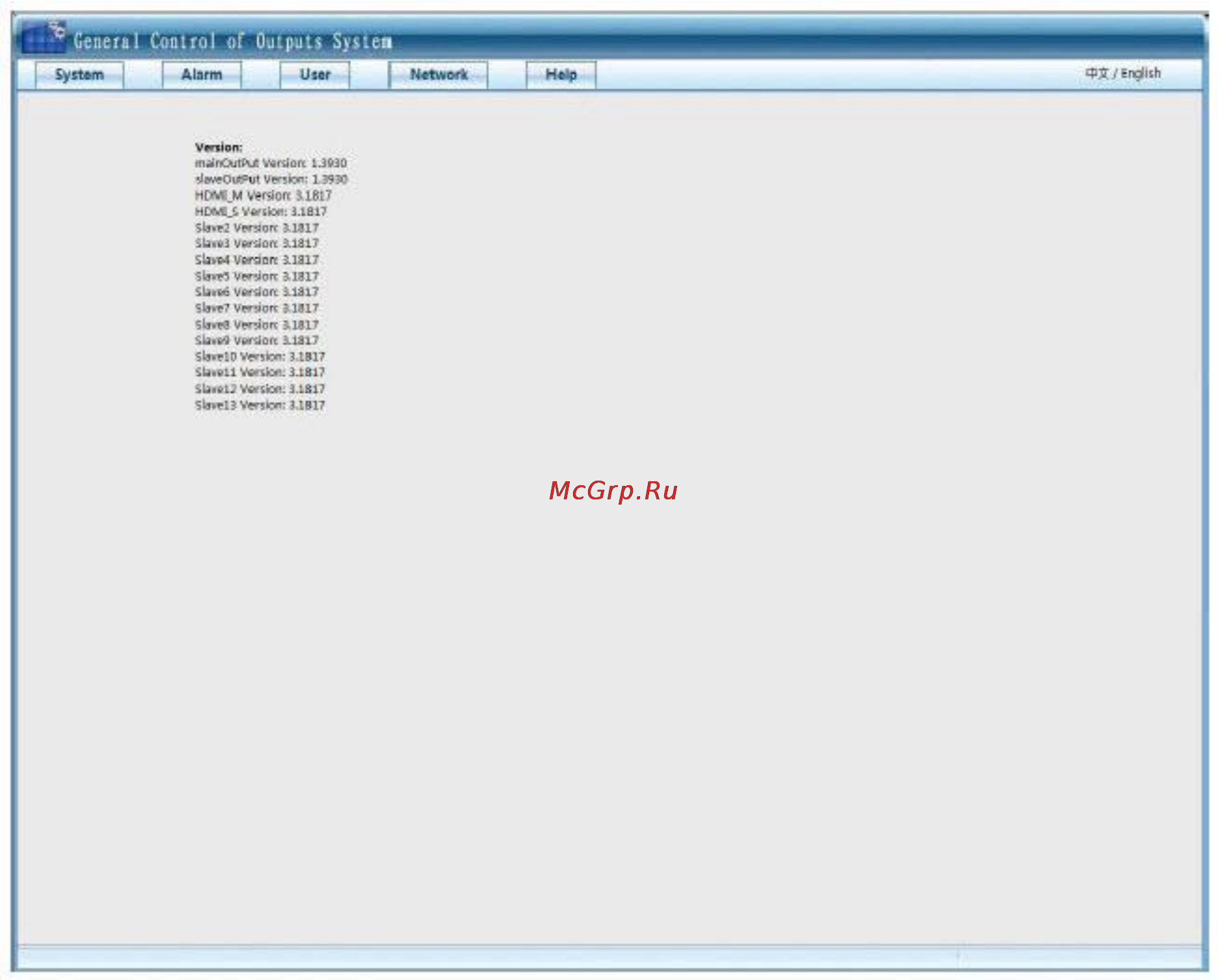

Shows the version of current firmware loaded on each module.

Main output, Slave output, M1 HDMI input (Slave 0) on the Main output module, S1 HDMI

input (Slave 1) on the Slave output module and then each input module (from Slave 2 up

to Slave 17 on a fully populated SVG MultiViewer system).
