Kramer SierraView™ SVG Multi Viewer [73/85] User configuration

SVG MULTIVIEWER

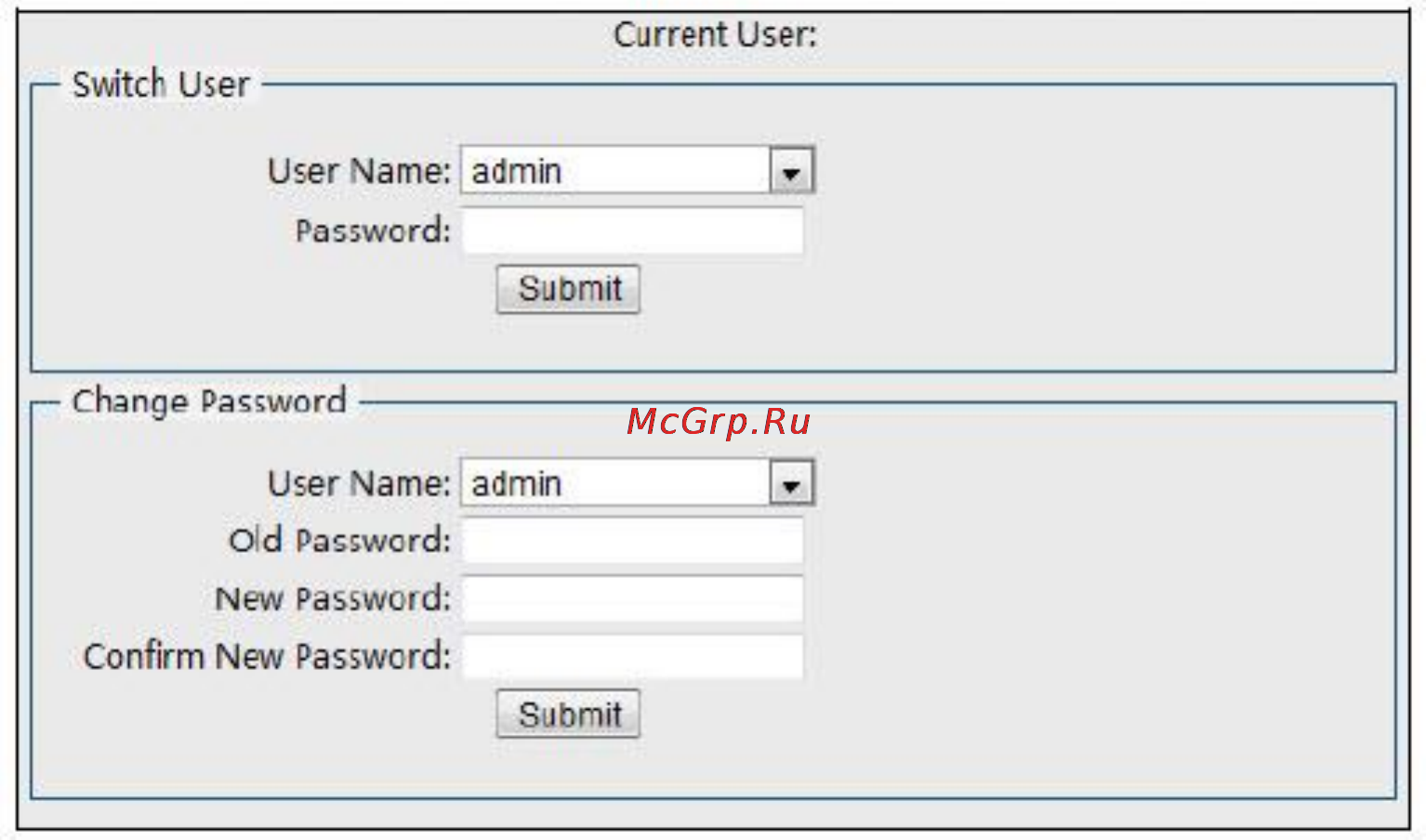

User Configuration

The SVG MultiViewer software provides password-protected functions. The initial

(default) user name is admin, and the initial password is 000000 (six zeroes). Users can

modify the password with a maximum password length of 12 characters. When you

modify the password successfully, the SVG will prompt as "The password is altered

successfully. It will take effect when you login next time."
