SIERRA VIDEO

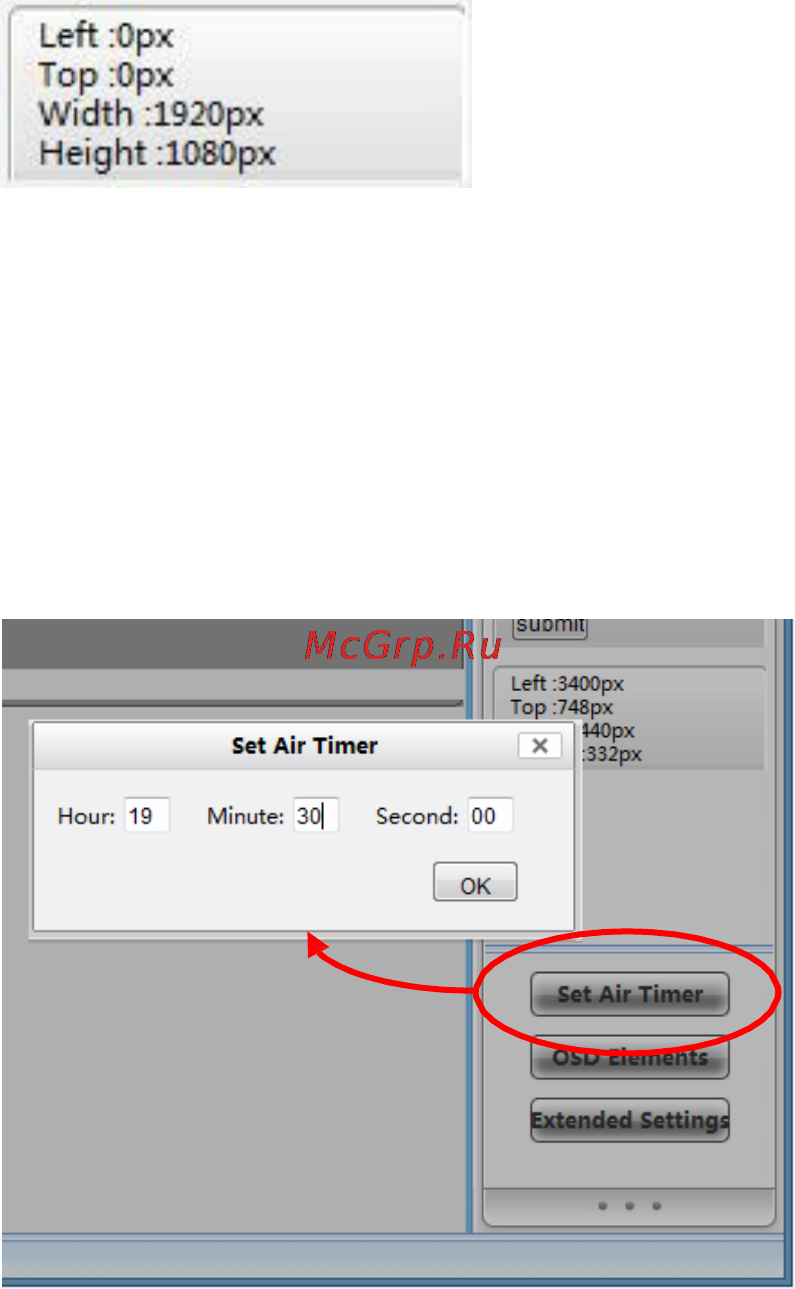

Position and Size

Select an object and the values of that channel’s coordinates, width and height are

shown on the right side of the web page. For information only, not adjustable here.

Set Air Timer

The Air Timer of each display screen can be set separately.

First, click the target screen, and then press the “Set Air Timer” button. The Set Air Timer

message box pops up (see the picture above). Enter the numbers (hours, minutes,

seconds) into the three blank areas separately.

Then press “OK” button or the Enter key to submit the data.

The countdown timer is the interval time between the Air Timer and the current time.
