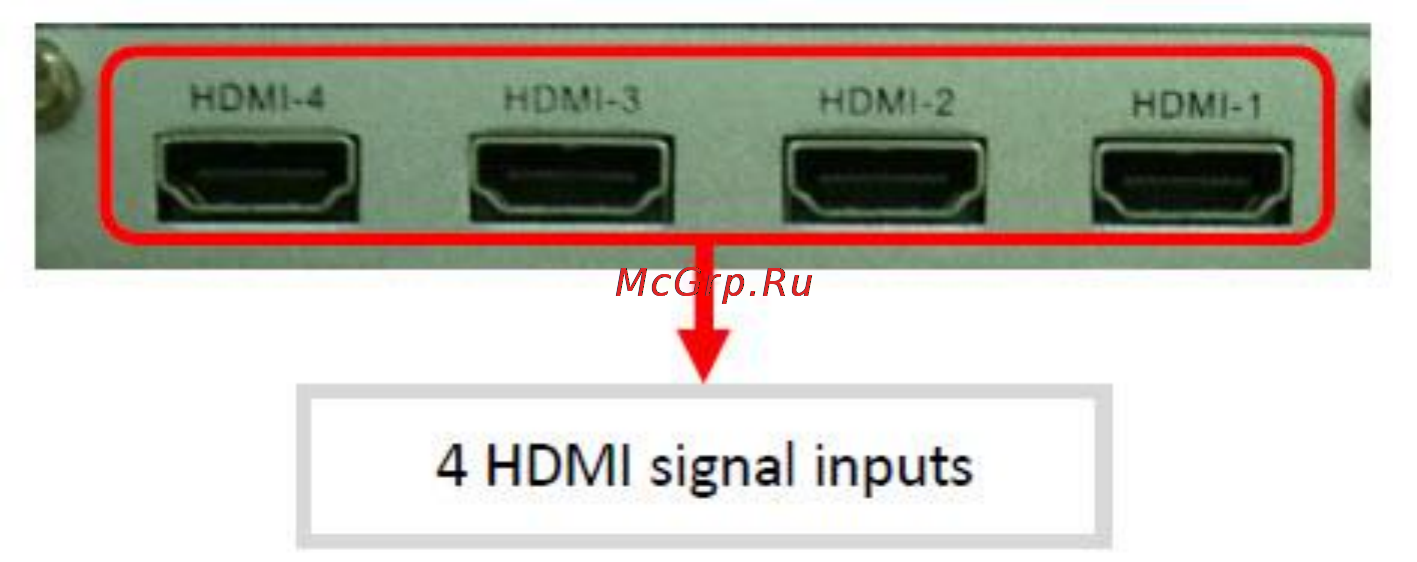

Kramer SierraView™ SVG Multi Viewer [22/85] Svg hdmi hdmi input module

SIERRA VIDEO

04-SVG-HDMI (HDMI Input module)

Support resolutions:

Video:

SD: 480i 59.94, 576i 50

HD: 720p 50Hz/60Hz

1080i 50Hz/60Hz

1080p 24Hz/25Hz/30Hz

1080p 50Hz/60Hz

Graphic:

1280x720px50/60Hz

1920x1080px25/30Hz

1920x1080px50/60Hz

Supports HDMI signals with embedded audio and indicates up to 4 audio channels

of Group1.

Supports HDCP protocol.
