Kramer SierraView™ SVG Multi Viewer [41/85] Make delete signal marker

SVG MULTIVIEWER

Make/Delete signal marker

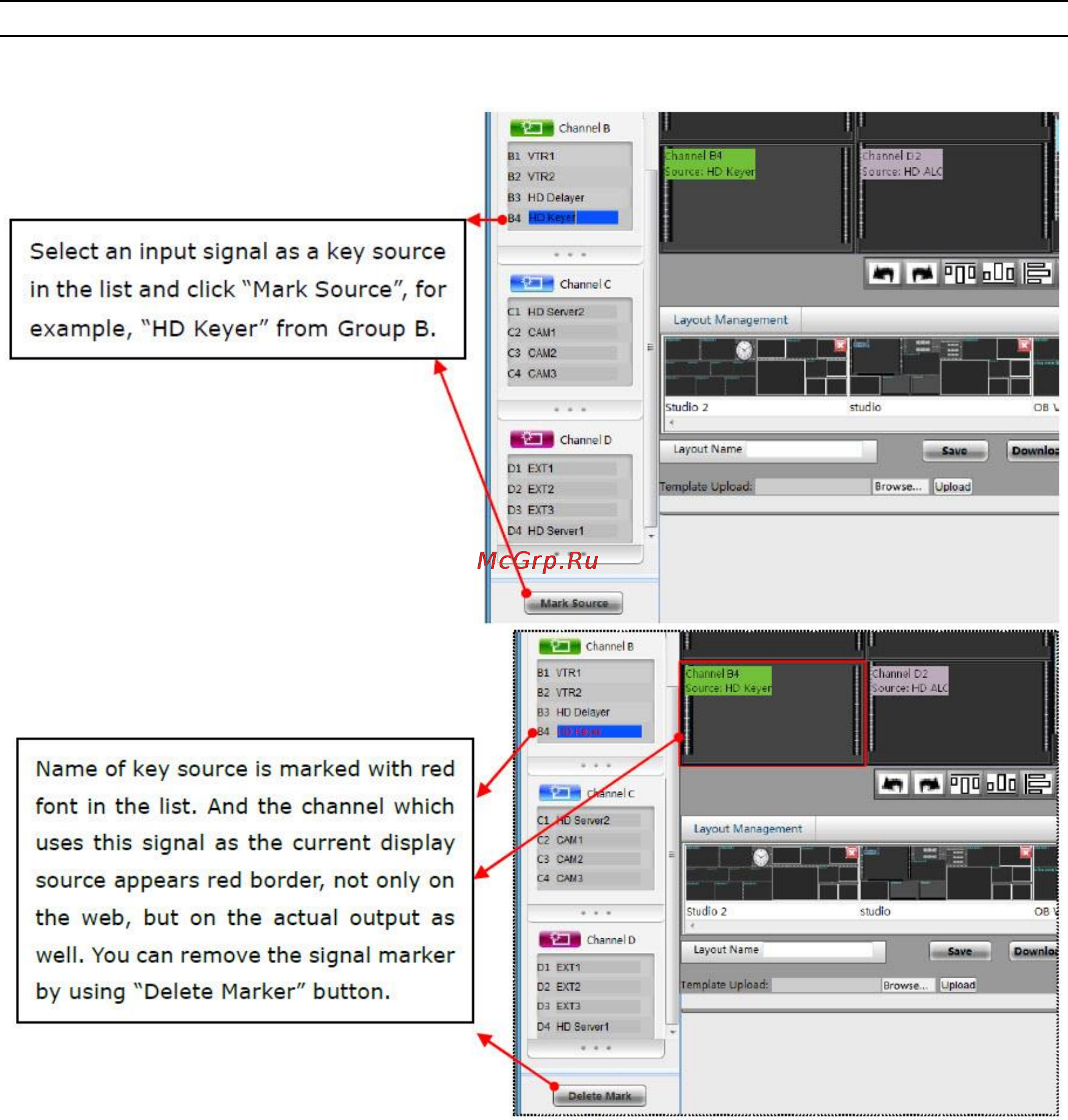

Key signals can be marked with red font. Meanwhile, the channel displayed with it will be

marked with red border, in order to locate it quickly in a complicated layout, even after a

series of position adjustments.

Note:

You can mark multiple signals at same time.
