Kramer SierraView™ SVG Multi Viewer [20/85] Dual output system
![Kramer SierraView™ SVG Multi Viewer [20/85] Dual output system](/views2/1153911/page20/bg14.png)
SIERRA VIDEO
10

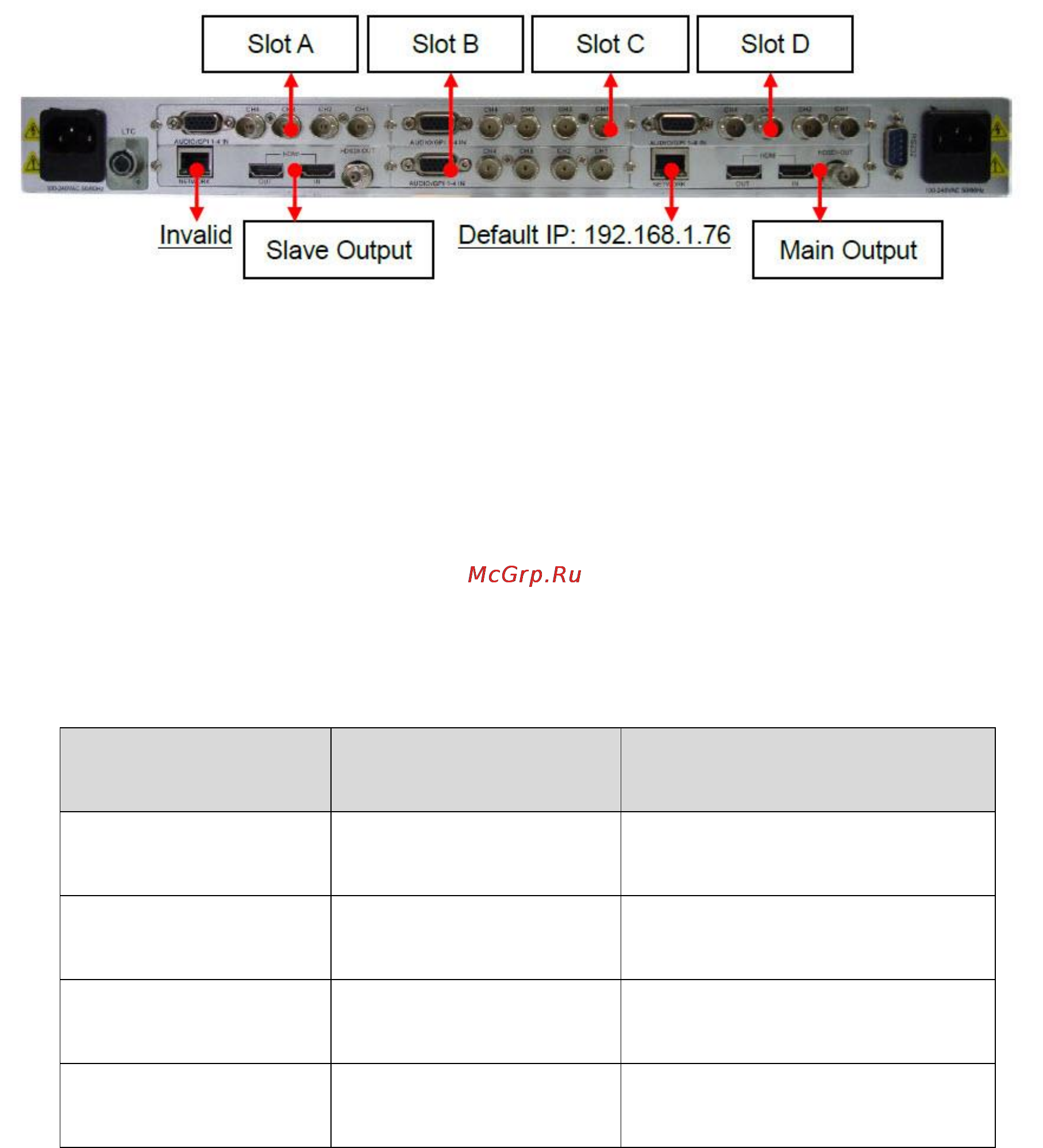

Dual Output System
For a dual outputs display system, there are two output cards, which are main output
card and slave output card. See the picture above.
The dual outputs are both configured by the web browser at the same time via the
network interface (RJ45) on the main output card. The default IP address is
192.168.1.76.
Please Note: The RJ45 interface on slave output card is invalid with no function (do not
connect to this RJ45 interface).
Dual outputs system can be configured to be single output system easily via web browser
Configuration page (IP: 192.168.1.76/config.html then delete the second channel).
Based on different quantity of input cards, the combination of SVG is described as
following (the +2 refers to the HDMI inputs on each the two output modules):
Qty of Output Cards
Qty of Input Cards
Combination
2
1
6 pictures (4+2) display system
2
2
10 pictures (8+2) display system
2
3
14 pictures (12+2) display system
2
4
18 pictures (16+2) display system
