SVG MULTIVIEWER

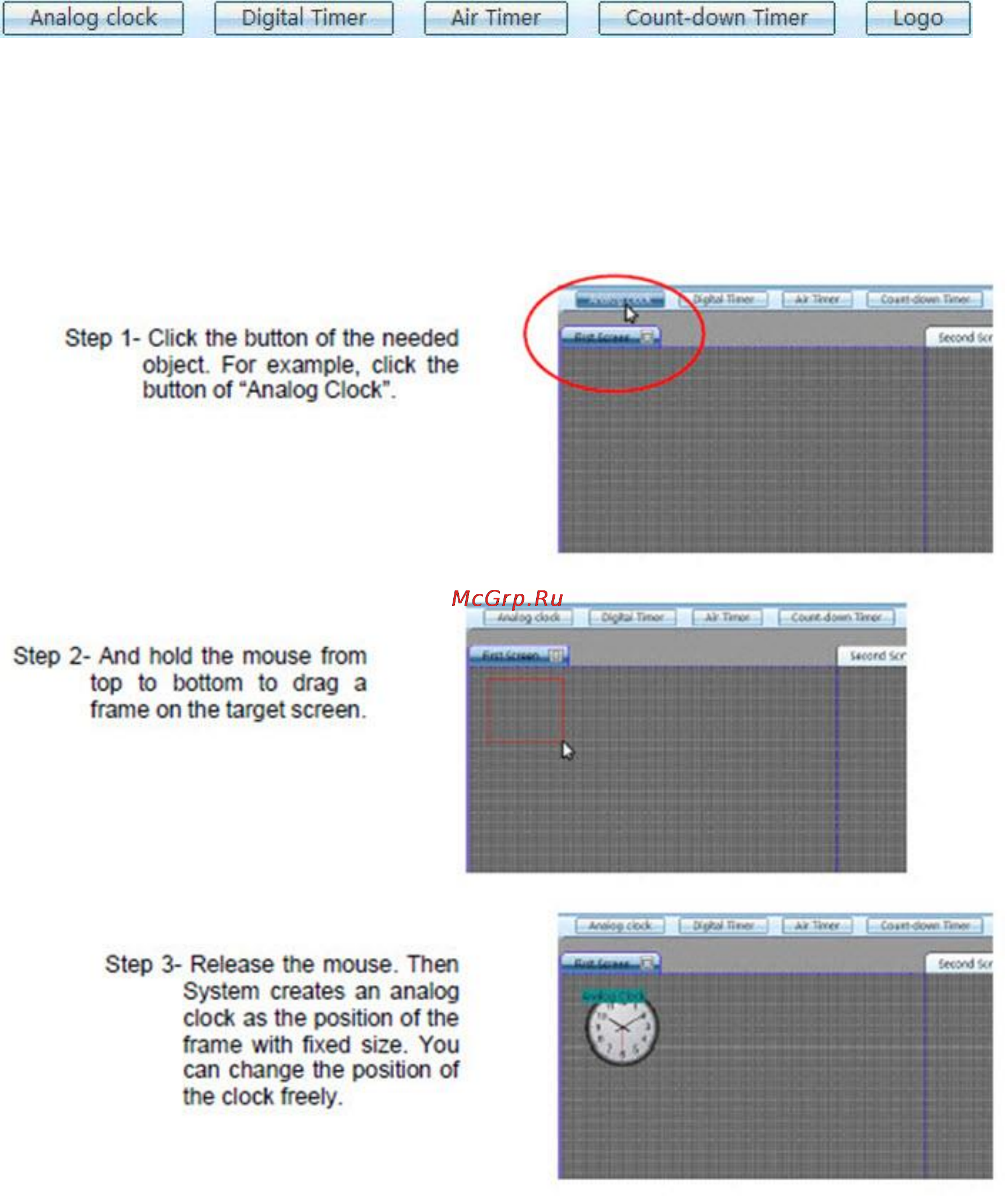

Create Clock/ Timer/ Logo

The following objects can be created besides video channels.

Analog Clock, Digital Timer, Count-down Timer, Air Timer, and Logo.

You can create up to two of Analog Clock/ Digital Timer/ Count-down Timer/ Air Timer/

Logo, but only one of each object can exist on each screen.

The size of Logo and Analog Clock cannot be changed. You can change the size of

Digital Timer, Count-down Timer, and Air Timer freely.
