Kramer SierraView™ SVG Multi Viewer [32/85] Edit screens

SIERRA VIDEO

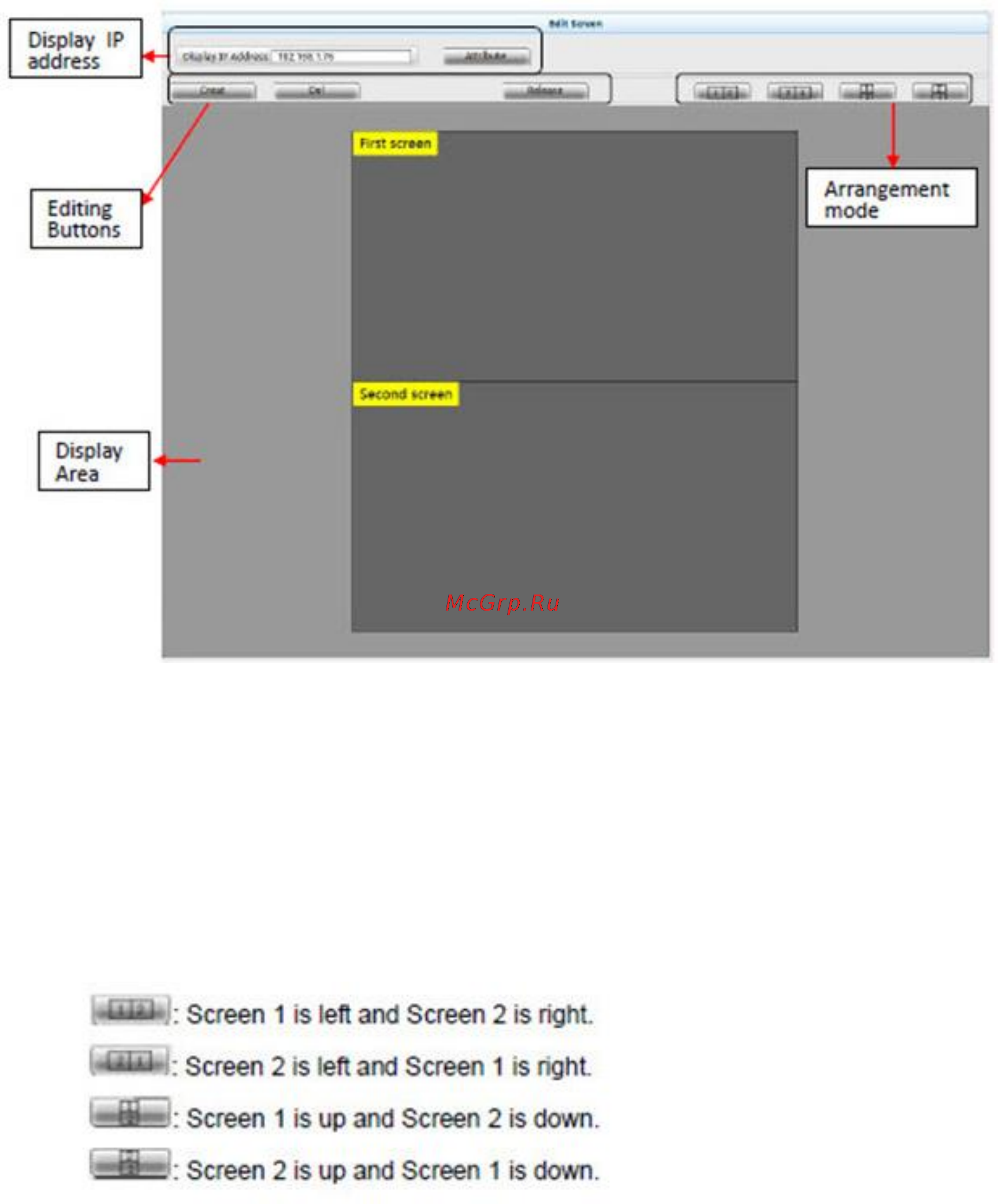

Edit Screens

Display IP address: Show the IP address of dual output system, read only.

Editing Buttons: Create, Delete and Release.

Create: To create a screen. Up to two screens can be created.

Delete: To delete an existing screen.

Release: To release current name of input sources and arrangement of screens

and jump to web page of 192.168.1.76

Arrangement mode: To arrange the position of the edit screens on the browser

interface, according to the actual physical position of the monitors that the SVG is

connected to. Screen 1 is the HDMI output signal of the main output card and screen 2 is

the HDMI output signal of slave output card.
