Kramer SierraView™ SVG Multi Viewer [25/85] Typical applications

SVG MULTIVIEWER

Graphic:

1280x720px50/60Hz

1920x1080px25/30Hz

1920x1080px50/60Hz

HDSDI OUT

There is an HD/SD-SDI output interface on the output module. HD/SD-SDI interface

outputs the same video signal as HDMI interface. Two HD/SD-SDI audio channels, four

HDMI audio channels, or one analog audio signal can be embedded into the HD/SD-SDI

output signal.

The output format can be configured via web browser to fixed values as below:

480i 59.94 (NTSC only), 576i 50 (PAL only)

720p, 1080i, 1080p

Typical Applications

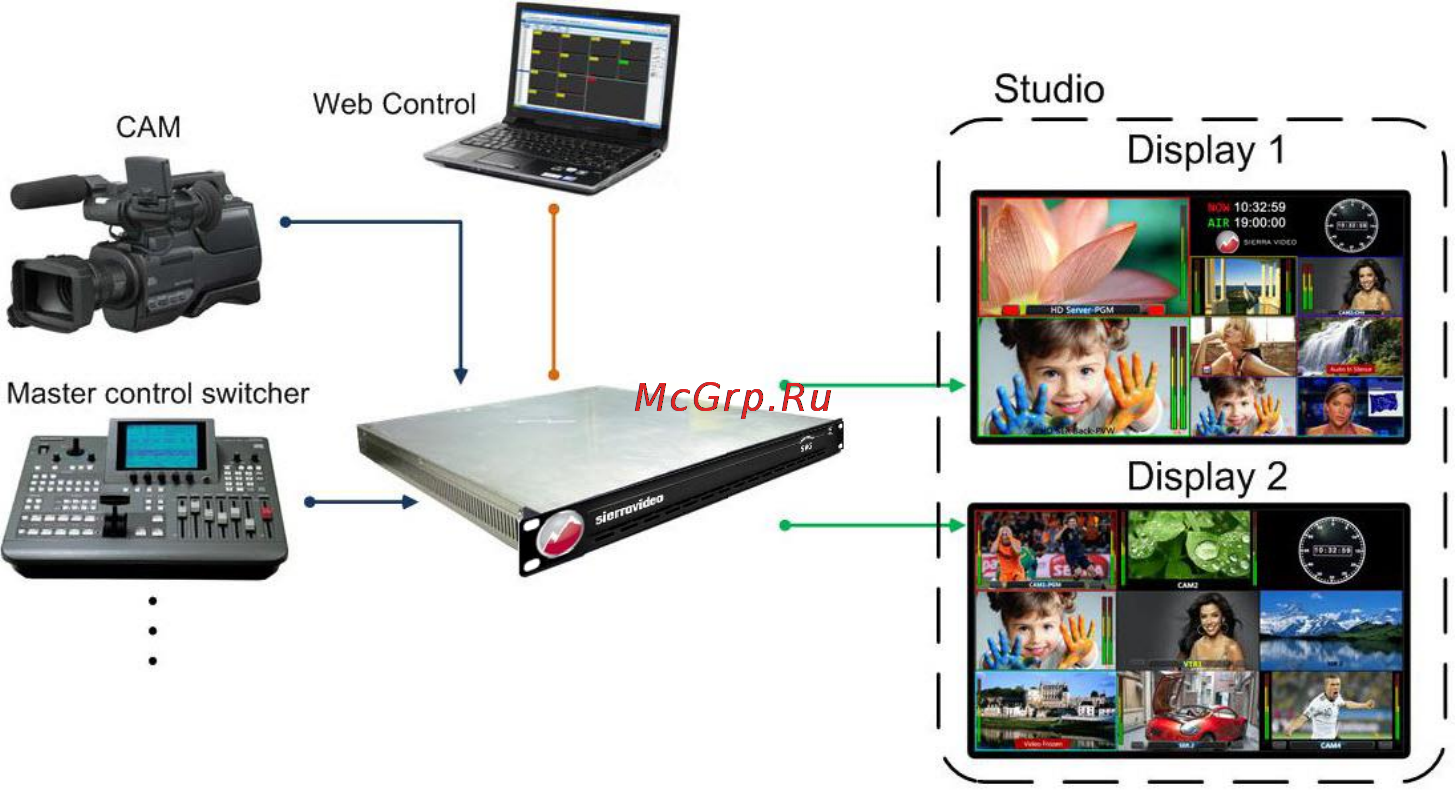

Using the dual outputs system example below:

The SVG can be applied in a Studio system with two outputs from a single device. Input

signal sources can be appointed to display on any or both outputs.
