Kramer SierraView™ SVG Multi Viewer [21/85] Input rear panel

SVG MULTIVIEWER

Input Rear Panel

There are three kinds of input modules: SD/HD/3G input module (04-SVG-3GHD),

CVBS/SD-SDI input module (04-SVG-CVSD), and HDMI input module (04-SVG-HDMI)

04-SVG-3GHD (SD/HD/3G Input module)

Supported resolutions:

SD: 480i 60, 576i 50

HD: 720p 50Hz/60Hz

1080i 50Hz/59.94Hz/60Hz

1080p 23.976Hz/24Hz/25Hz/29.97Hz/30Hz

3G HD: 1080p 50/59.94/60

The SD/HD/3G input module supports 3G/HD/SD signals with embedded audio and

indicates up to 4 audio channels of Group1.

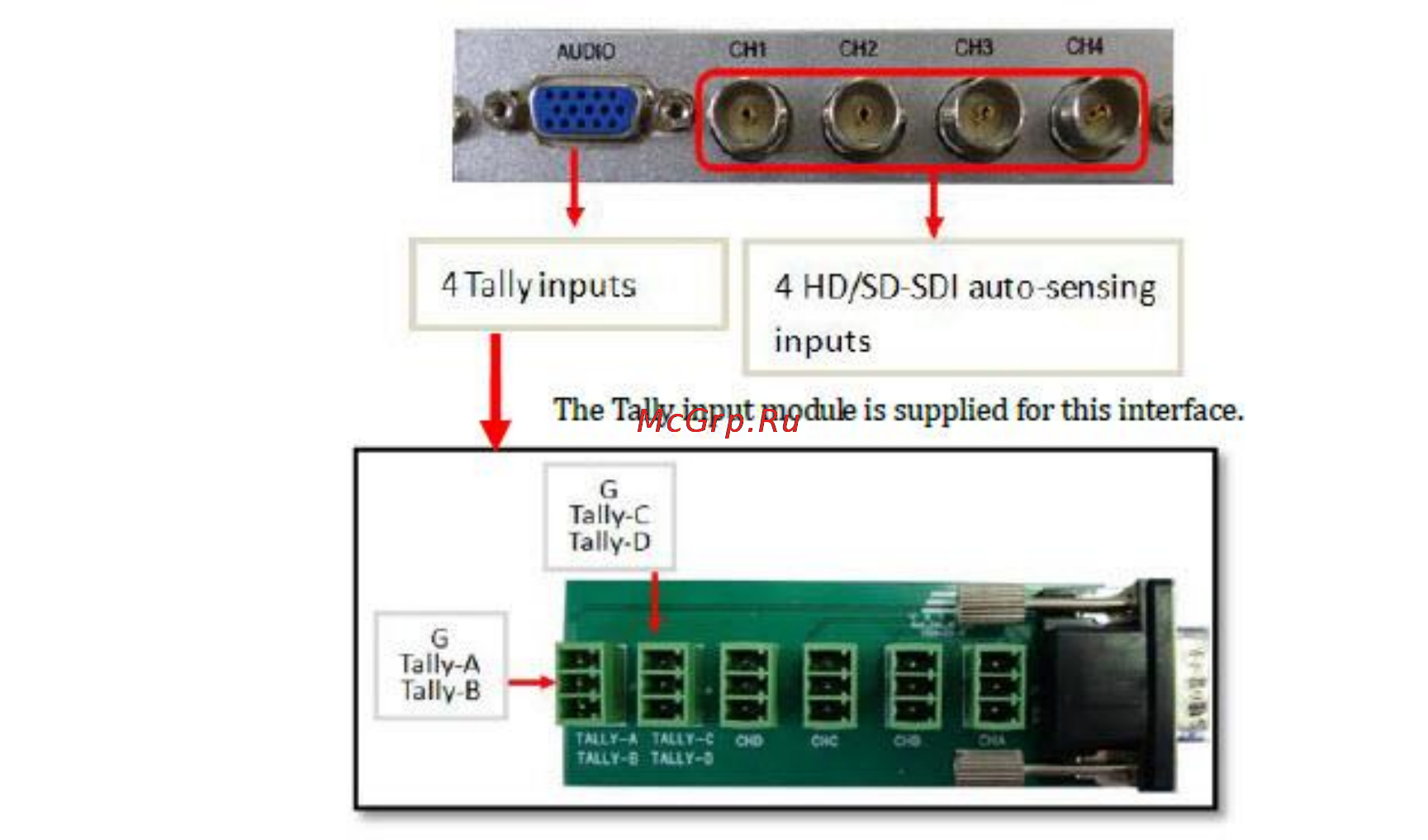

The SD/HD/3G input module uses the mini-adapter Tally/Audio interface for Tally signals

only. Analog audio signals are not supported with this input module.
