SIERRA VIDEO

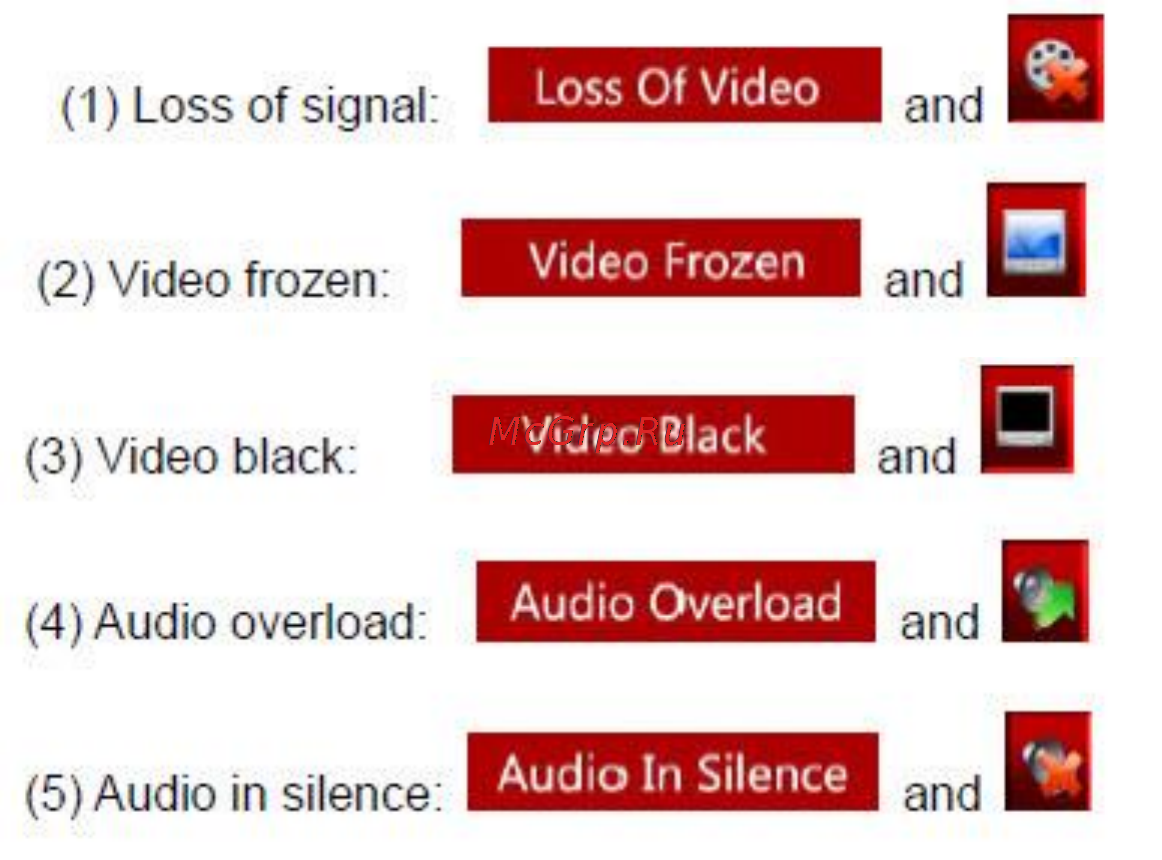

The video and audio input of each channel can report signal status and validity, with

detection of the following (displayed as text or icons):

Several channels can be configured at the same time. If the detection parameters of each

channel differ from others, the configuration should be completed separately.
