ZyWALL USG Support Notes
106
All contents copyright (c) 2010 ZyXEL Communications Corporation.

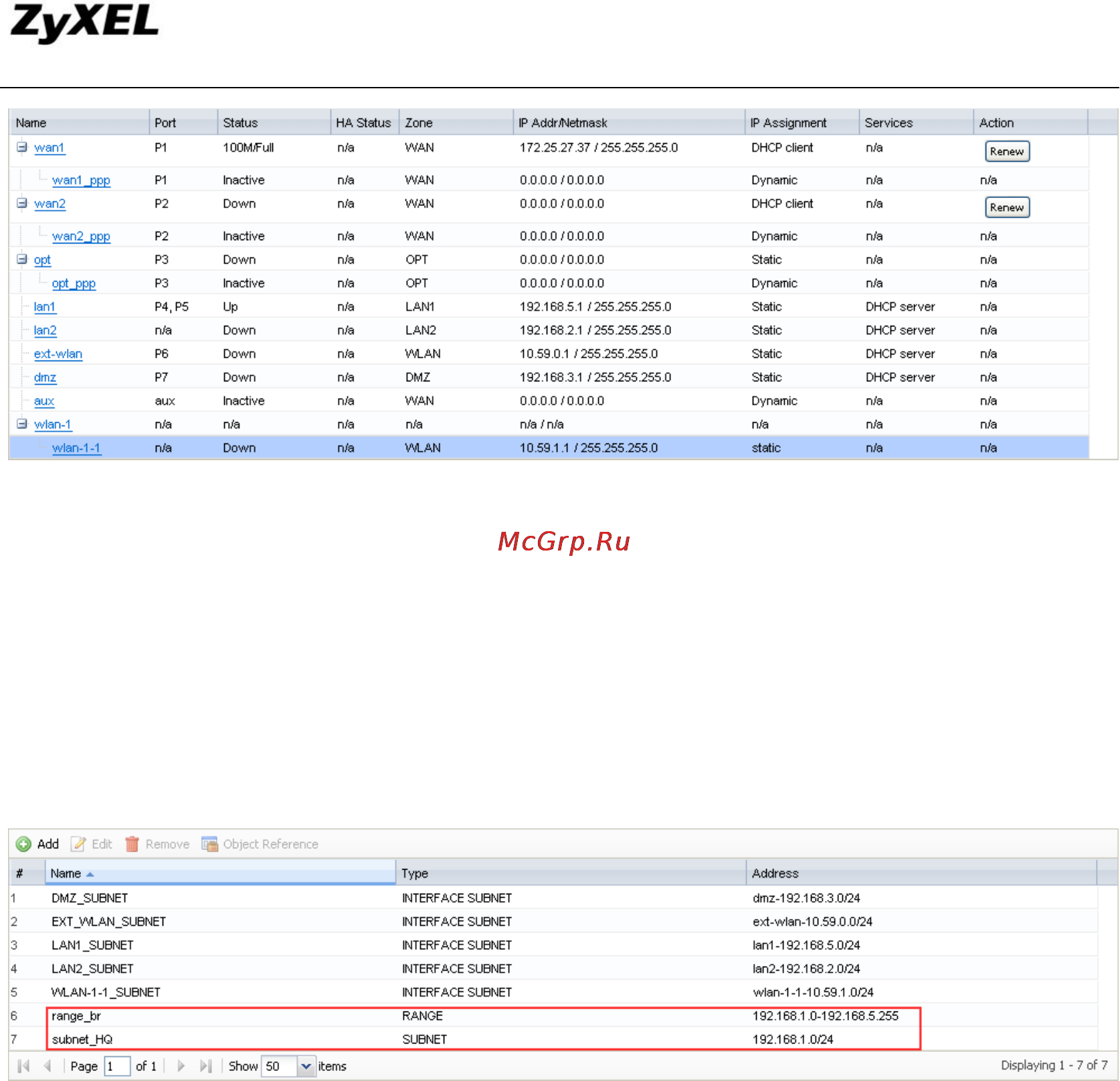

Step2. Go to Configuration > Object > Address, add HQ local subnet address object
for later IPSec VPN configuration use. And a range address object for later use in
Policy Route configuration to route traffic to all other branch offices‟ local networks
to VPN tunnels. This range object should cover all the branch offices‟ local subnets.
In this case we create it as 192.168.1.0~192.168.5.255.
Step3. Go to Configuration > VPN > IPSec VPN > VPN Gateway, add VPN phase1
rule to build tunnel to HQ.
My Address: WAN1 IP (172.25.27.37)
Peer Gateway Address: HQ WAN IP (172.25.27.140)
