ZyWALL USG Support Notes
40
All contents copyright (c) 2010 ZyXEL Communications Corporation.

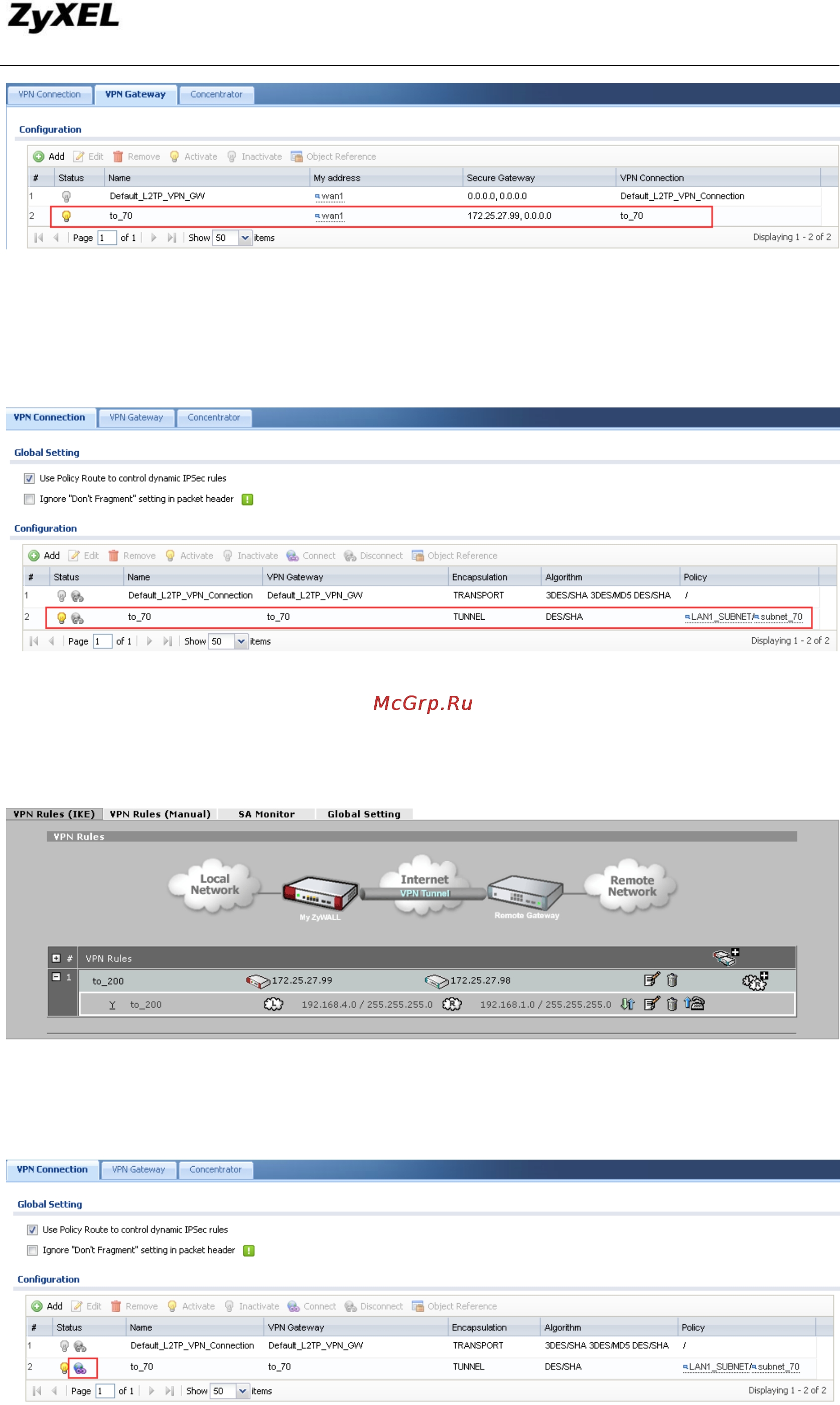

Step2. Go to Configuration > VPN > IPSec VPN > VPN Connection, add VPN
Connection (Phase 2) rule.
On the ZyWALL 70:
Go to Security > VPN, add VPN phase1 and phse2 rules.
Establish the tunnel.
